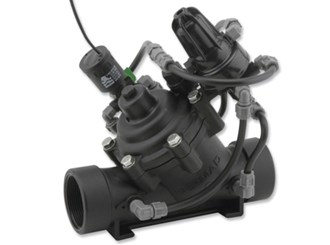

Flow Control Valve IR-170-55-bD

The BERMAD Normally Closed, Flow Control Valve with Hydraulic Remote Control is a hydraulically operated, diaphragm actuated control valve that limits system demand to a constant preset maximum flow rate. It either opens or shuts in response to an electric signal.

  • Line Pressure Driven, Electrically Controlled On/Off

-Limits fill-up rate and consumer over-demand

  • Adjustable Servo Flow Pilot Controlled

-Dynamic integrated needle valve

  • Engineered Plastic Valve with Industrial Grade Design

-Adaptable on-site to a wide range of end connection sizes and types

-Articulated flange connections eliminate mechanical and hydraulic stresses

-Highly durable, chemical and cavitation resistant

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing

-Requires low actuation pressure

-Prevents diaphragm erosion and distortion

  • Internal “Differential Pressure Duct” Flow Sensor

-No moving parts

-Saves space and simplifies installation

Typical Applications

  • Computerized Irrigation Systems
  • Line Fill-Up Control
  • Multiple Independent Consumer Systems
  • Systems Subject to Varying Supply Pressure
  • Remote and/or Elevated Plots
  • Energy Saving Irrigation Systems
  • Distribution Centers




[1] BERMAD Model IR-170-55-bD opens in response to an electric signal,

protects supply system from excessive flow and limits lateral and distribution line fill-up.
[2] BERMAD Solenoid Controlled Valve Model IR-110-N1-2W
[3] BERMAD Air Valve Model ARA-A-P-P
[4] BERMAD Vacuum Breaker Model ½”-ARV
