Video

C70 AS Operation

Watch this movie to learn about the BERMAD 70 SP - the most advanced and sophicsticated combination air valve in the market.

Column Seperation

Watch this movie to learn how installing the BERMAD C70 Combination Air Valve prevents damage from column separation.

Vacuum Conditions

Watch this movie to learn how the BERMAD C70 Combination Air Valves eliminate vacuum conditions in the pipeline and protect it from collapsing.

Filling & Operation

Watch this movie to learn how Installing a BERMAD C70 Combination air valve on the high points of the pipeline rapidly releases air during the initial stages of the pipeline filling.

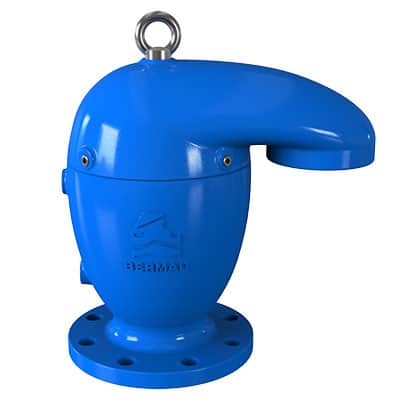

Combination Air Valve Model C70

BERMAD C70 is a high quality combination air valve for a variety of water networks and operating conditions.



It evacuates air during pipeline filling, allows efficient release of air pockets from pressurized pipes, and enables large volume air intake in the event of network draining.

With its advanced aerodynamic design, double orifice and anti-slam / slow closing device, this valve provides excellent protection again air accumulation, vacuum formation and pressure surges, with improved sealing in low pressure conditions. The valve minimizes water spraying during air release.

  • Straight flow body with nominal (equal) inlet and outlet size – Higher than usual flow rates.
  • Aerodynamic full-body kinetic shield – Prevents premature closing without disturbing air intake or discharge.
  • Dynamic sealing – Prevents leakage under low pressure conditions (0.1 bar).
  • Minimizes water spraying during air release – Innovative 2-step function, automatic orifice (Patent Pending).
  • Three optional outlets (sideways, downwards, circular-surround mushroom configuration) that can swivel 360° – Easy to install in a variety of site conditions.
  • Compact, simple, robust and reliable structure with fully corrosion-resistant parts – Lower maintenance and increased life span.
  • Designed in compliance with EN-1074 / 4, AWWA C-512 standards and water service standards.
  • Factory approval and Quality Control – Performance and specification tested and measured with specialized test bench, including vacuum pressure conditions.

Typical Applications:



  • Pumping stations and deep well pumps – Air relief, surge protection and vacuum prevention.
  • Pipelines – Protection against air accumulation and vacuum formation at elevations, slope change points and at road / river crossings.
  • Water networks – Protection against vacuum formation, surge and water hammers at points
    likely to experience water column separation.
