Bermad Fire Protection | Hydraulically Controlled Deluge Valve | FP 400E-1M

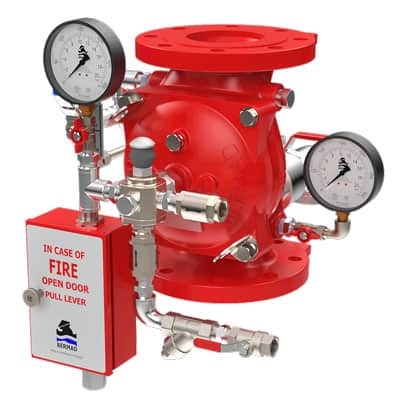

Hydraulically Controlled Deluge Valve FP 400E-1M

The BERMAD Model FP 400E-1M Classic Deluge Valve includes a Manual EsayLock Reset for latching the valve open in response to an electric, hydraulic, pneumatic, or electro-pneumatic signal.  The Deluge Valve resets to the closed position only upon local manual reset activation.

  • Latch open – Closes upon local reset only
  • One-piece molded diaphragm-Only moving part – No maintenance required
  • Simple design – Cost effective
  • Obstacle-free full-bore – Uncompromising reliability
  • Factory pre-assembled trim – Out-of-box quality
  • In-line serviceable – Minimal down time

Typical Applications

  • Automatic spray or foam systems
  • Petrochemical facilities
  • Flammable materials storage
  • Gas storage tanks
  • Hydraulic remote controlled systems

Operation

The BERMAD Model FP 400E-1M is suitable for systems that include wet pilot lines with closed fusible plugs.  The Deluge Valve latches open in response to hydraulic pressure drop in the wet pilot line.
