Bermad Fire Protection | Electric Pressure Control On-OFF Deluge Valve | FP 400E-3DC

Video

BERMAD Launches Fire Protection Torrent Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducing and pressure relief. Certified and approved to the latest fire protection standards, It is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, Seawater, foam concentrate and other corrosive liquids.

Features and Benefits of BERMAD Torrent Valve

The BERMAD FP/FS-400Y Torrent valve is designed specifically for the fire protection industry, with an emphasis on rugged reliability a for 25 bar/365 psi with an industry-leading flow rate. It is equally suited to vertical or horizontal installation and is available in pipe diameter sizes from 1½” to 16” (DN40 to DN400).

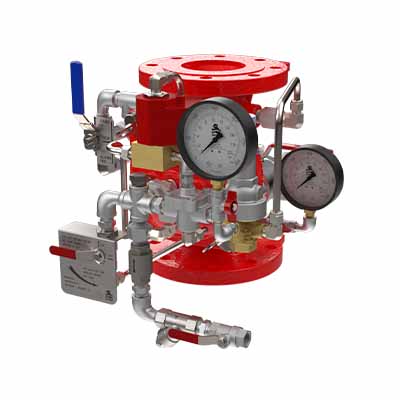

Electric Pressure Control On-OFF Deluge Valve FP 400E-3DC

  • Pressure control function – Constant lower preset, downstream pressure
  • Remote reset – Shut-off on remote command
  • One-piece molded diaphragm-Only moving part – No maintenance required
  • Simple design – Cost effective
  • Obstacle-free full – Uncompromising reliability
  • Factory pre-assembled trim – Out-of-box quality
  • In-line serviceable – Minimal down time

Typical Applications

  • Flactuating or over pressure
  • Water/foam fire systems
  • Deluge & spray systems
  • Petrochemical facilities
  • Flammable materials storage
  • Marine environments
  • Gas storage tanks
  • Remote monitor

Operation

The BERMAD Model FP 400E-3DC is suitable for flow control in firewater systems that include electric fire detection.  It opens and closes in response to an electric signal.  When open, it reduces the pressure to preserve the system maximum designed flow.
