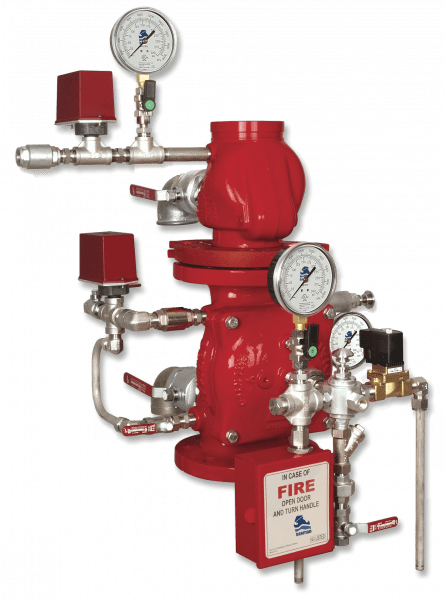

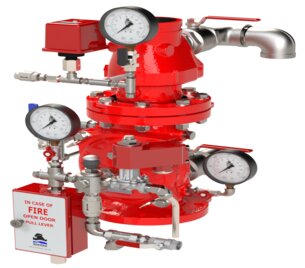

Single Interlock Pre-action, Electric Release System FP 400E-7M

The BERMAD Model FP 400E-7M Single Interlock Pre-Action Release System is suitable for use in systems requiring that water be kept out of the sprinkler piping until an electric detecting device has been activated. Single Interlock Pre-Action Systems include automatic sprinklers attached to a dry sprinkler piping system, with a supplementary electric detection system installed in the same area. This system admits water into the sprinkler piping upon activation of the detection system.Water is discharged only through sprinklers that have been opened due to excessive heat. When a Supervised System is required, a pneumatic low pressure supply shall be provided. An anti-flooding feature is provided by utilizing an in-line check valve, which creates an intermediate vented chamber using a Normally Open drip-check.

  • Latch open – Closes only upon local reset
  • Factory pre-assembled trim – Out-of box-quality
  • In-line serviceable – Minimal down time
  • In-line Check Valve – intermediate vented chamber- Anti flooding

Typical Applications

Water damageable material storage:

  • Computer & Electronics Rooms
  • Libraries, Museums & Archives
  • Telecommunications equipment
  • Cable spreading rooms
  • Oil-filled-transformer rooms

Freezing conditions

Operation



The BERMAD Model FP 400E-7M Single Interlock Pre-action Release System admits water into the sprinkler piping only upon operation of the electric detection system.
