Electric, Pressure-Control, On-Off Deluge Valve | FP 400Y-3DC

Video

Tunnel Fire, Deluge Valve

The BERMAD 400Y 3DC Torrent Deluge Valve reacts immediatly to the heat or smoke detection devices allowing foam-water solution into the system piping and to the foam solution dispersion appliances. The integral pressure reducing pilot ensures a precise preset and stable downstream pressure.

BERMAD Launches Fire Protection Torrent Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducing and pressure relief. Certified and approved to the latest fire protection standards, It is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, Seawater, foam concentrate and other corrosive liquids.

BERMAD 400Y Torrent – Fire Protection Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducin and pressure relief. Certified and approved to the latest fire protection standards, it is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, seawater, foam concentrate and other corrosive liquids.

Features and Benefits of BERMAD Torrent Valve

The BERMAD FP/FS-400Y Torrent valve is designed specifically for the fire protection industry, with an emphasis on rugged reliability a for 25 bar/365 psi with an industry-leading flow rate. It is equally suited to vertical or horizontal installation and is available in pipe diameter sizes from 1½” to 16” (DN40 to DN400).

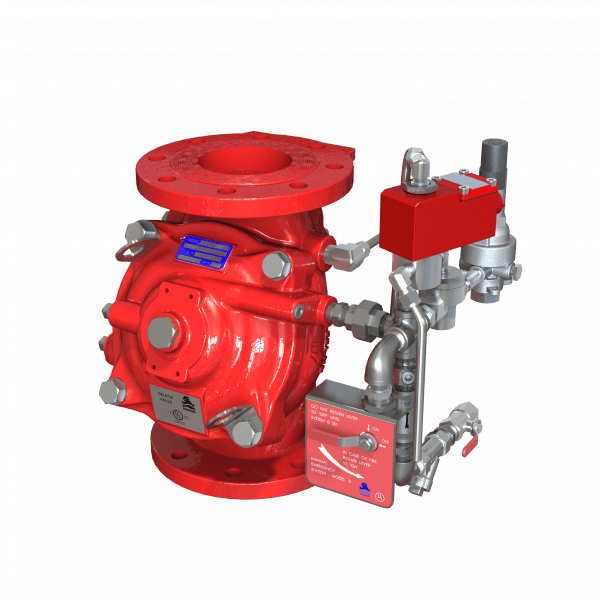

Electric Pressure Control, On-Off Deluge Valve FP 400Y-3DC



The BERMAD model 400Y-3DC is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.

The 400Y-3DC is activated by a 3-way solenoid valve by which opening and closing of the deluge valve may be controlled remotely.

An integrated pressure reducing pilot ensures a precise and stable pre-set downstream water pressure.

The 400Y-3DC is ideal for open-nozzle systems with a high pressure water supply and is available with electric components to suit any hazardous location.

The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.



  • Safety and reliability

❑ Time-proven, simple, fail-safe actuation
❑ Single-piece, rugged, elastomeric diaphragm sea VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Shuts off on remote command
❑ Ensures precise, stable downstream water pressure
❑ Valve position limit switches (optional)

  • Designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Meets the requirements of the industry standards

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves*

* not including 1½” & 2” valves

 Typical Applications

  • Remote control water spray systems
  • Foam applications
  • Corrosive water supplies
  • High pressure water supply



System Installation

A typical installation of the BERMAD model 400Y-3DC features actuation via a hydraulic relay valve and three-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.

When open, and fitted with a limit switch the valve can send a feedback signal to a remote valve
position monitoring system.

A pressure reducing pilot valve integrated in the control trim ensures a precise and stable pre-set downstream water pressure.
