Pneumatically Controlled Deluge Valve | FP 400Y-4M

Video

LNG on Fire

Under fire conditions, the BERMAD 400Y-3UM Deluge Valve opens in response to the Solenoid Valve being activated by the fire and gas control system. The 400Y-3UM Deluge Valve latches open, allowing water to flow into the system piping.

BERMAD 400Y Torrent – Fire Protection Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducin and pressure relief. Certified and approved to the latest fire protection standards, it is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, seawater, foam concentrate and other corrosive liquids.

BERMAD Launches Fire Protection Torrent Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducing and pressure relief. Certified and approved to the latest fire protection standards, It is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, Seawater, foam concentrate and other corrosive liquids.

Features and Benefits of BERMAD Torrent Valve

The BERMAD FP/FS-400Y Torrent valve is designed specifically for the fire protection industry, with an emphasis on rugged reliability a for 25 bar/365 psi with an industry-leading flow rate. It is equally suited to vertical or horizontal installation and is available in pipe diameter sizes from 1½” to 16” (DN40 to DN400).

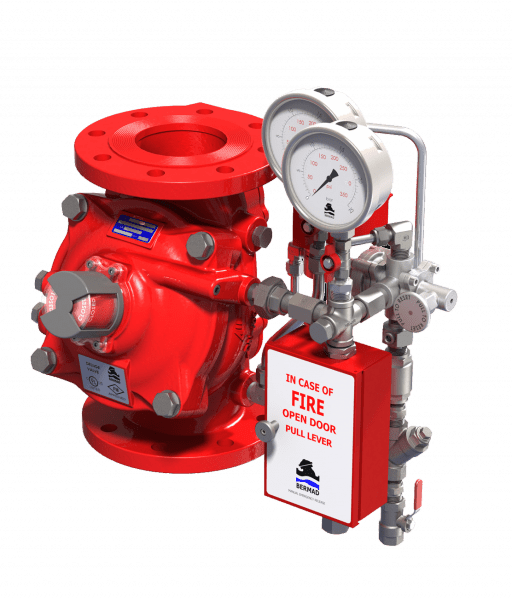

Electrically Controlled Deluge Valve with Local Reset FP 400Y-3UM



The BERMAD model 400Y-3UM is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards.

The 400Y-3UM is activated by a 3-way solenoid valve, which actuates a latching relay valve, to open the main valve.

Once open, the main valve will not close until locally reset. The optional valve position indicator can include a limit
switch suitable for Fire & Gas monitoring systems.

The 400Y-3UM is ideal for systems with open nozzles for water or foam discharge, available with electric components to suit any hazardous location.

  • Safety and reliability

❑ Time proven, Simple, fail-safe actuation
❑ Single piece, rugged elastomeric diaphragm seal – VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Latches open: remains open until reset locally
❑ Valve position limit switches (optional)
❑ Local valve position indicator beacon (optional)

  • High performance

❑ Very high flow efficiency
❑ Straight through flow Y- type body
❑ Approved for PN25 / 365 psi

  • Specifically designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Meets the requirements of industry standards



  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves for quick and efficient installation*

* not including 1½” & 2” valves

 Typical Applications

  • Electric fire detection systems with control panels
  • Automatic water spray systems
  • Foam applications
  • Corrosive water supplies



System Installation

A typical installation of the BERMAD model 400Y-3UM features automatic actuation via a relay valve and three-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.

When fitted with a limit switch, the valve can send a feedback signal to a remote valve position monitoring system.3UM_Page_03_HiRes_REV00
