Pneumatic, Pressure-Control, On-Off Deluge Valve | FP 400Y-4DC

Video

BERMAD 400Y Torrent – Fire Protection Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducin and pressure relief. Certified and approved to the latest fire protection standards, it is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, seawater, foam concentrate and other corrosive liquids.

BERMAD Launches Fire Protection Torrent Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducing and pressure relief. Certified and approved to the latest fire protection standards, It is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, Seawater, foam concentrate and other corrosive liquids.

Features and Benefits of BERMAD Torrent Valve

The BERMAD FP/FS-400Y Torrent valve is designed specifically for the fire protection industry, with an emphasis on rugged reliability a for 25 bar/365 psi with an industry-leading flow rate. It is equally suited to vertical or horizontal installation and is available in pipe diameter sizes from 1½” to 16” (DN40 to DN400).

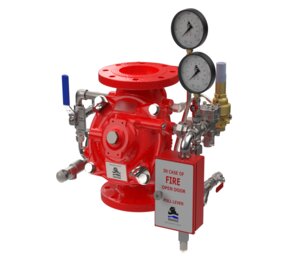

Pneumatic, Pressure Control On-Off Deluge Valve FP 400Y-4DC



The BERMAD model 400Y-4DC is an elastomeric hydraulic, line pressure operated, deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.

The 400Y-4DC is activated by a pneumatic relay valve. Opening and closing of the valve can be controlled remotely.

An integrated pressure reducing pilot valve ensures a stable and precise pre-set downstream water pressure.

The BERMAD 400Y-4DC is suitable for open-nozzle systems with a high pressure water supply. The pneumatic control makes it ideal for use in freezing environments and corrosive media.

The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.



  • Safety and reliability

❑ Time-proven, simple, fail-safe actuation
❑ Single-piece, rugged, elastomeric diaphragm seal – VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Shuts off on remote command
❑ Ensures precise, stable downstream water pressure
❑ Valve position limit switches (optional)

  • High performance

❑ Very high flow efficiency
❑ Straight-through-flow Y-type body
❑ Approved for PN25 (365 psi)

  • Designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Suitable for corrosive fluids and freezing
temperatures: pneumatic relay valve
❑ Designed to meet the requirements of the industry standards

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves*

* not including 1½” & 2” valves

 Typical Applications

  • Remote control water spray systems
  • Foam applications
  • Corrosive water supplies
  • High pressure water supply
  • Freezing conditions



System Installation

A typical installation of the BERMAD model 400Y-4DC features actuation via a pneumatic universal relay valve.

When open, and fitted with a limit switch the valve can send a feedback signal to a remote valve position monitoring system.

A pressure reducing pilot valve integrated in the control trim ensures a precise and stable pre-set downstream water pressure.
