Electro-Pneumatic, Pressure-Control, Latching Deluge Valve | FP 400Y-6DC-H

Electro-Pneumatic, Pressure Control Deluge Valve with Local Reset FP 400Y-6DC-H

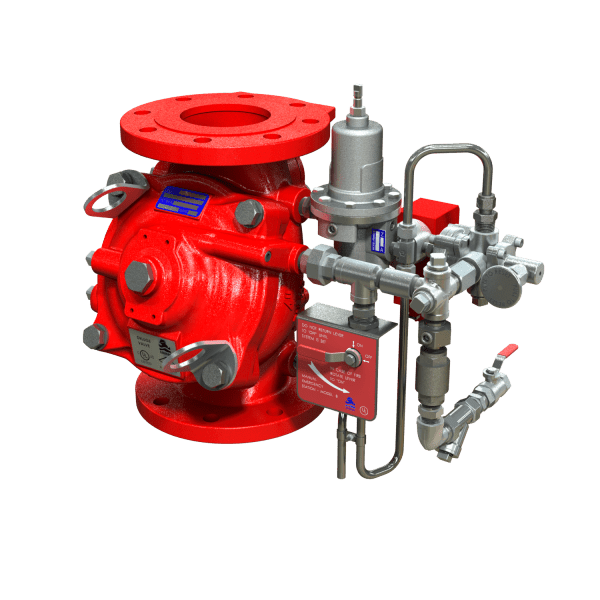

The BERMAD Model 400Y-6DC-H is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.

The 400Y-6DC-H is activated by a fall in pneumatic pressure caused either by the activation of a sprinkler in the dry pilot line or by an electric signal to the 3 way solenoid valve.

The 6DC-H can also be activated remotely either pneumatically or electrically. Once open the 6DC-H latches in the open position, until locally reset.

When open an integrated pressure reducing pilot valve regulates the main valve to maintain a precise, stable, pre-set
downstream pressure.

The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.

The 400Y-6DC-H is ideal for open-nozzle systems with a high pressure water supply. It is available with electrical
components to suit any hazardous location.

  • Safety and reliability

❑ Time-proven, simple, fail-safe actuation
❑ Single-piece, rugged, elastomeric diaphragm seal-VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Shuts off on remote command
❑ Ensures precise, stable downstream water pressure
❑ Valve position limit switches (optional)

  • High performance

❑ Very high flow efficiency
❑ Straight-through-flow Y-type body
❑ Approved for PN25/365psi

  • Designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Meets the requirements of industry standards

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves*

* not including 1½” & 2” valves

Typical Applications

  • Fusible plug loop systems
  • Automatic water spray systems
  • Foam applications
  • Corrosive water supplies
  • High pressure water supply
  • Dual redundant detection system



System Installation

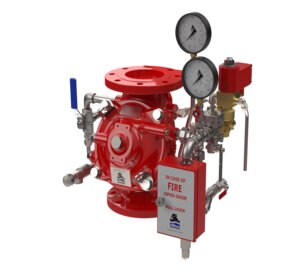

A typical installation of the BERMAD model 400Y-6DC-H features automatic actuation via a pneumatic universal relay valve, triggered by a fusible plug loop.

It can also be triggered electrically by a signal from a fire & gas control system or an on-site emergency pushbutton.

Once open, the relay pilot URV-M will latch mechanically keeping the 400Y-6DC-H open, until locally reset.

A pressure reducing pilot valve integrated in the trim ensures precise, pre-set, stable downstream water pressure.

When fitted with a limit switch the valve can send a feedback signal to a remote valve position monitoring system.
