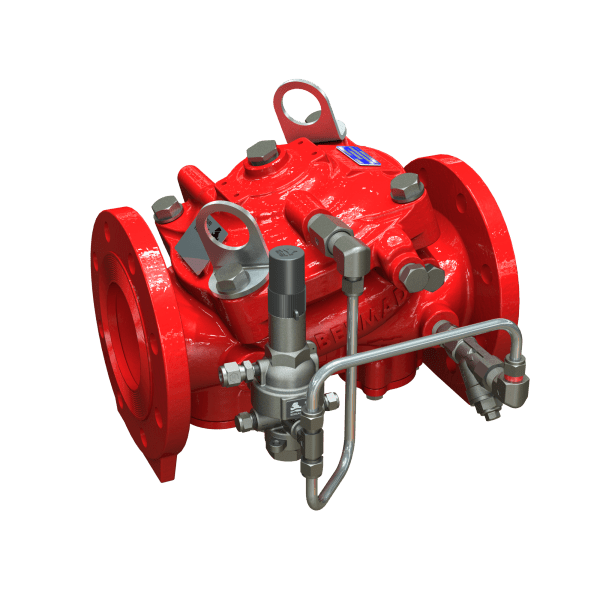

Pressure Differential Reducing Control Valve (PDRCV) | FP 42T-06

Pressure Differential Reducing Control Valve (PDRCV) FP 42T-06



The BERMAD model 42T-06 is an elastomeric hydraulic line pressure driven differential reducing valve, specifically designed for advanced fire protection systems and the latest industry standards.

The 42T-06 is equipped with an adjustable differential pilot valve and is used to maintain a set pressure differential between two different points.

When the differential between the two sensed pressures approaches the pre-set maximum the pilot valve starts to close the main valve regulating the pressure and preventing the differential from rising further.

The 42T-06 is ideal for balanced foam proportioning systems, also as a safeguard for dosing pump flow overload.

As an option the 42T-06 can be fitted with a valve position indicator that can include a limit switch suitable for Fire & Gas monitoring systems.

  • Safety and reliability

❑ Time tested, simple, fail-safe actuation
❑ Single piece, rugged elastomeric diaphragm seal – VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts

  • High performance

❑ Very high flow efficiency
❑ Exceptional proportioning accuracy
❑ Straight through flow Y-type body
❑ Rated up to PN25 / 365 psi

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal

Typical Applications

  • Pump overload & cavitation protection
  • Balanced pressure proportioning systems
  • Pump flow safeguard
  • Foam concentrate injection systems



System Installation

A typical installation of the BERMAD model 400Y 42T-06 features valve actuation via pilot control to regulate the 42T-06 in response to an increase in differential pressure between two points.

The 42T-06 is ideally suited for regulation in balanced pressure proportioning systems or foam dosing applications.
