Pressure Relief Valve FP 43T

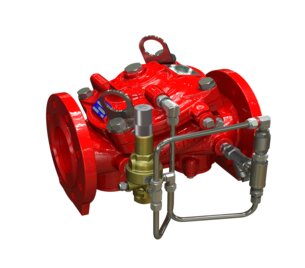

The BERMAD model 43T is an elastomeric, pilot operated, pressure-relief valve. Designed specifically
for advanced fire protection systems and the latest industry standards.

The 43T prevents damage from over-pressure in piping systems, maintaining a preset upstream pressure limit regardless of pressure peaks and fluctuating conditions.

Due to exceptional reliability and low head loss, it is ideal for relief of fire pump discharge.

The 43T dependably relieves excess system pressure to sump or atmosphere, meeting all NFPA, UL, and FM requirements for fire pump service.

The 43T is also well-suited for maintaining foam concentrate discharge pressure for a balanced proportioning system.
As an option the 43T can be fitted with a valve position indicator that can include a limit switch suitable for Fire & Gas monitoring systems.



  •  Safety and reliability

❑ Time-proven, simple, fail-safe actuation
❑ Single piece, rugged, elastomeric diaphragm seal – VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ High discharge capacity
❑ No mechanical moving parts

  •  High performance

❑ Fast, smooth response to pressure fluctuations
❑ High flow capacity
❑ Approved for PN 25bar/365 psi
❑ Straight-through-flow Y-type body

  •  Specifically-designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Meets the requirements of the industry standards

  •  Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal

 Typical Applications

  • Fire pump pressure relief
  • Foam concentrate recirculation
  • Centralized thermal pressure relief
  • Zonal safety relief



System Installation

A typical installation of the BERMAD model 43T features a pilot valve for the automatic and accurate maintenance of a constant preset maximum upstream pressure, regardless of fluctuating demand.

The fast opening 43T reliably relieves excess system pressure to sump or atmosphere, meeting NFPA, UL, and FM requirements for fire pump
service.

A unique actuator design ensures quick and smooth valve action.
