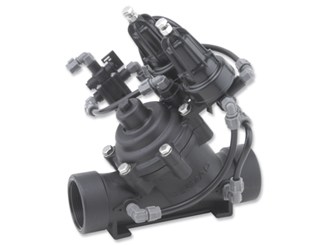

Pressure Reducing and Sustaining Valve IR-123-54-X

The BERMAD Model IR-123-54-X is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure and reduces downstream pressure to a constant preset maximum. It is a Normally Closed valve, which opens in response to a remote pressure rise command and shuts in the absence of that command.

  • Line Pressure Driven, Normally Closed

-Closes upon control failure

-Protects downstream system

-Prioritizes pressure zones

-Controls system fill-up

-Amplifies and relays weak remote command

  • Engineered Plastic Valve with Industrial Grade Design

-Highly durable, chemical and cavitation resistant

-No internal bolts and nuts

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing

-Requires low actuation pressure

-Prevents diaphragm erosion and distortion

  • User-Friendly Design

-Easy flow and pressure setting

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Line Fill-Up Control Solutions
  • Pressure Reducing Systems
  • Remote and/or Elevated Plots
  • Infield Filter Backwash Pressure Sustaining
  • Energy Saving Irrigation Systems




[1] BERMAD Model IR-123-54-X opens upon pressure rise command,

sustains supply pressure,controls laterals and distribution line fill-up,

and reduces their operating pressure.
[2] BERMAD Solenoid Controlled Valve Model IR-110-N1-2W
[3] BERMAD Air Valve Model ARA-A-P-P
[4] BERMAD Vacuum Breaker Model ½”-ARV
