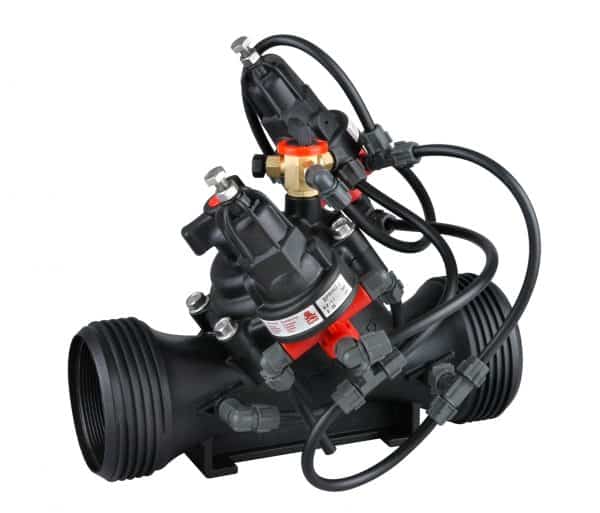

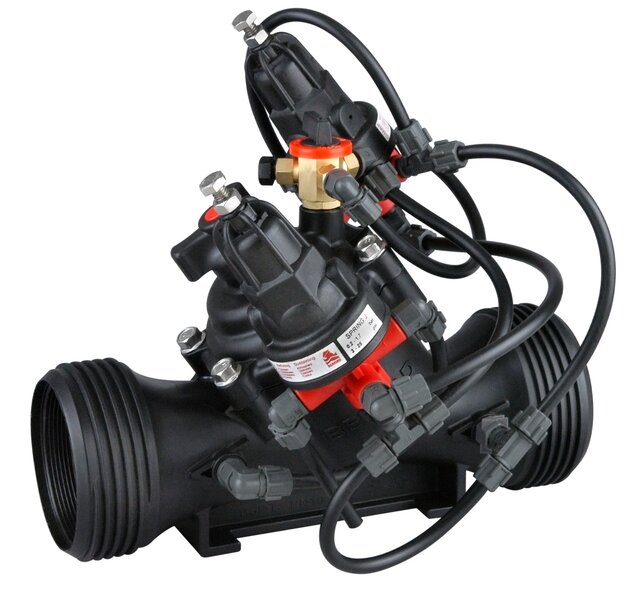

Pressure Reducing and Sustaining Valve IR-123-XZ

The BERMAD Model IR-123-XZ is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure and reduces downstream pressure to a constant preset maximum.

  • Line Pressure Driven, Hydraulically Controlled

-Protects downstream system

-Prioritizes pressure zones

-Controls system fill-up

  • Engineered Plastic Valve with Industrial Grade Design

-Highly durable, chemical and cavitation resistant

-No internal bolts and nuts

  • hYflow ‘Y’ Valve Body with “Look Through” Design

-Ultra-high flow capacity – Low pressure loss

  • Unitized Flexible Super Travel (FST) Diaphragm and Guided Plug

-Accurate and stable regulation with smooth closing

-Requires low opening and actuation pressure

-Prevents diaphragm erosion and distortion

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

Typical Applications

  • Line Fill-Up Control Solutions
  • Line Emptying Prevention
  • Pressure Reducing Systems
  • Infield Filter Backwash Pressure Sustaining
  • Energy Saving Irrigation Systems




[1] BERMAD Model IR-123-XZ sustains supply system pressure,

and establishes reduced higher pressure zone.
[2] BERMAD Solenoid Controlled Valve Model 210-N1
[3] BERMAD Pressure Reducer Model 11/2-PRV
[4] BERMAD Vacuum Breaker Model ½”-ARV
