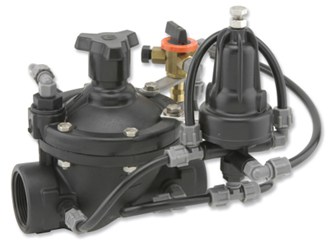

Pressure Reducing Valve IR-220-bZ

Pressure Reducing Valve IR-220-bZ

The BERMAD Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that accurately reduces higher upstream pressure to very low and stable preset downstream pressure regardless of fluctuating demand or varying upstream pressure.

    • Line Pressure Driven, Hydraulically Controlled
        • Protects downstream systems







    • Pressure Reducing Servo Pilot Controlled
        • Dynamic integrated needle valve



        • Easily settable to 0.5 bar; 7 psi



        • Very low hysteresis







    • Plastic Globe Hydro-Efficient Valve
        • Unobstructed flow path



        • Single moving part



        • High flow capacity



        • Highly durable, chemical and cavitation resistant







    • Unitized Flexible Diaphragm and Guided Plug
        • Excellent low flow regulation performance



        • Prevents diaphragm erosion and distortion







    • Fully Supported & Balanced Diaphragm
        • Requires low actuation pressure







    • User-Friendly Design
        • Simple in-line inspection and service







Typical Applications

  • Drip-Tape Systems
  • Low Set Pressure Applications
  • Low Supplied Pressure Irrigation Systems
  • Energy Saving Irrigation Systems


[1] BERMAD Model IR-220-bZ establishes a reduced pressure zone,

protecting laterals and distribution line.
[2] BERMAD Solenoid Controlled Valve Model IR-110-N1
[3] BERMAD Vacuum Breaker Model ½”-ARV
