Pressure Reducing Valve IR-420-XZ

Pressure Reducing Valve IR-420-XZ

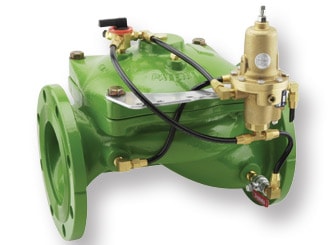

The BERMAD Model IR-420-XZ Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower constant downstream pressure regardless of fluctuating demand and opens fully upon line pressure drop.

    • 3-Way Hydraulically Actuated Pressure Reducing Valve
        • Protects downstream systems



        • Opens fully upon line pressure drop







    • Advanced Globe Hydro-Efficient Design
        • Unobstructed flow path



        • Single moving part



        • High flow capacity







    • Fully Supported & Balanced Diaphragm
        • Requires low actuation pressure



        • Excellent low flow regulation performance



        • Progressively restrains valve closing



        • Prevents diaphragm distortion







    • User Friendly Design
        • Easy pressure setting



        • Simple in-line inspection and service



        • Easy addition of control features







Typical Applications

  • Pressure Reducing Stations
  • Flow and Leakage Reduction
  • Systems Subject to Varying Supply Pressure
  • Energy Saving Irrigation Systems
  • Downhill Supply Lines
  • Pressure Zoning
  • System Maintenance Savings
