Irrigation IR-43020

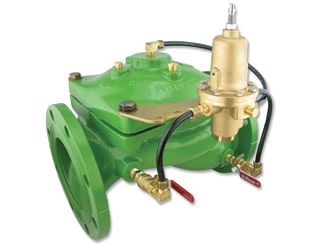

Pressure Relief/Sustaining Valve IR-430

The BERMAD Model IR-430 Pressure Relief/Sustaining Valve is a hydraulically operated, diaphragm actuated control valve that can fulfill either of two separate functions. When installed in-line, it sustains minimum preset upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a relief or circulation valve, it relieves line pressure in excess of preset.

    • Line Pressure Driven Pressure Relief/Sustaining Valve



    • Controls system fill-up



        • Sustains upstream line pressure



        • Relieves excessive pressure protecting pump and system



        • Prioritizes pressure zones







    • Advanced Globe Hydro-Efficient Design
        • Unobstructed flow path



        • Single moving part



        • High flow capacity







    • Fully Supported & Balanced Diaphragm
        • Requires low opening and actuation pressure



        • Excellent low flow regulation performance



        • Progressively restrains valve closing



        • Prevents diaphragm distortion







    • User Friendly Design
        • Easy pressure setting



        • Simple in-line inspection and service







Typical Applications

  • Downhill Supply Lines Emptying Prevention
  • Pressure Zone Prioritizing
  • Line Fill-Up Control
  • Pump Overload and Cavitation Protection
  • Pump Minimum Flow Safeguard
  • Excessive Line Pressure Protection
