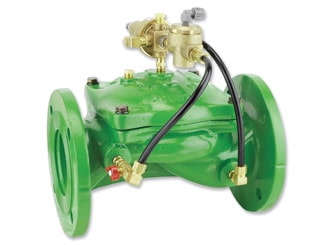

Pressure Relief/Sustaining Valve IR-430-50-R

Pressure Relief/Sustaining Valve IR-430-50-R

The BERMAD Model IR-430-50-R is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. It either opens or shuts in response to a remote pressure commands. When installed offline, the BERMAD Model IR-430-50-R relieves line pressure in excess of preset.

  • Hydraulic Pressure Control

-Line pressure driven, hydraulically controlled on/off

-Sustains supply pressure and controls system fill-up

-Relieves excess pressure protecting pump and system

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low actuation pressure

-Excellent low flow regulation performances

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Pressure Zone Prioritizing
  • Line Fill-Up Control
  • Line Emptying Prevention
  • Irrigation Machines
  • Distribution Centers
  • Low Supplied Pressure Irrigation Systems




[1] BERMAD Model IR-430-50-R opens upon pressure drop
command sustaining filter back flush pressure.
[2] BERMAD Backwash Valve Model IR-3×2-350-A-I
[3] BERMAD Relief Valve Model IR-43Q-R
[4] BERMAD Backwash Flow Control Valve Model IR-470-ebKU
[5] BERMAD N.C. Pressure Reducing Hydrometer
Model IR-920-M0-54-R
