Pressure Relief/Sustaining Valve IR-430-55-R

Pressure Relief/Sustaining Valve IR-430-55-R

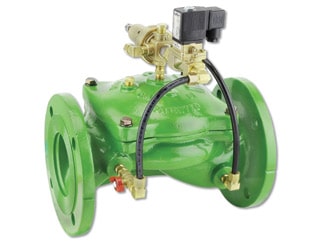

The BERMAD Pressure Relief/Sustaining Valve with Solenoid Control is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. It either opens or shuts in response to an electric signal. When installed offline, the BERMAD Model IR-430-55-R relieves line pressure in excess of preset pressure.

  • Hydraulic Pressure Control with Solenoid Control

-Line pressure driven

-Sustains upstream line pressure controlling system fill-up

-Relieves excess pressure protecting pump and system

-Electrically controlled On/Off

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Excellent low flow regulation performance

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Remote and/or Elevated Plots
  • Pressure Zone Prioritizing
  • Line Fill-Up Control
  • Line Emptying Prevention
  • Irrigation Machines
  • Low Supplied Pressure Irrigation Systems



[1] BERMAD Model IR-430-55-R opens in response to an
electric signal, sustains filters back flush pressure, and
controls system fill-up.
[2] BERMAD Backwash Valve Model IR-3×2-350-A-I
[3] BERMAD Relief Valve Model IR-43Q-R
[4] BERMAD Backwash Flow Control Valve Model IR-470-ebKU
[5] BERMAD N.C. Pressure Reducing Hydrometer
Model IR-920-M0-54-R
