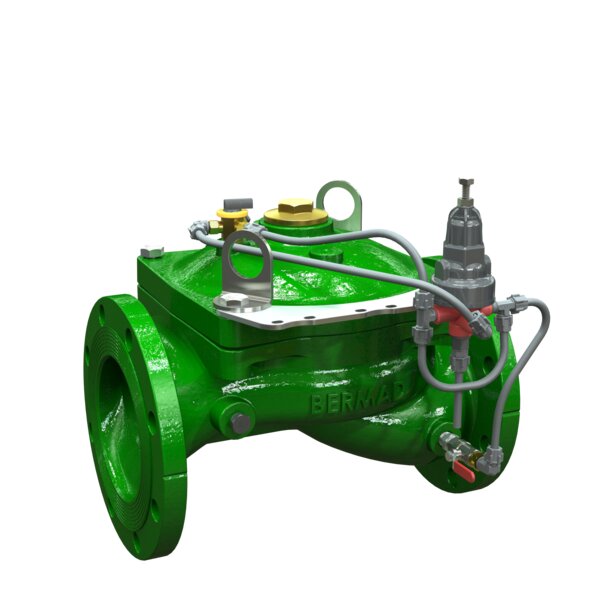

Pressure Sustaining Valve IR-430-KXZ

Pressure Sustaining Valve IR-430-KXZ

The BERMAD Pressure Sustaining Valve is a hydraulically operated, diaphragm actuated control valve that sustains minimum preset upstream (back) pressure and opens fully when line pressure is in excess of setting.

  • Line Pressure Driven, Hydraulically Controlled

-Prioritizes pressure zones

-Controls system fill-up

-Opens fully upon line pressure rise

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low actuation pressure

-Excellent low flow regulation performance

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

Typical Applications

  • Line Fill-Up Control Solutions
  • Line Emptying Prevention
  • Infield Filters Backwash Pressure Sustaining
  • Systems Subject to Varying Supply Pressure




[1] BERMAD Model IR-430-KXZ sustains supply system pressure preventing emptying,

and controls laterals and distribution line fill-up.
[2] BERMAD Relief Valve Model IR-43Q-R
[3] BERMAD Air Valve Model ARA-A-P-P
[4] BERMAD Vacuum Breaker Model ½”-ARV
