Irrigation IR-430-XZ20

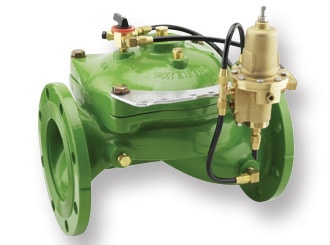

Pressure Sustaining Valve IR-430-XZ

The BERMAD Model IR-430-XZ Pressure Relief/Sustaining Valve is a hydraulically operated, diaphragm actuated control valve that it sustains minimum preset upstream (back) pressure regardless of fluctuating flow or varying downstream pressure.

    • 3-Way Hydraulic Actuated Pressure Sustaining Valve
        • Controls system fill-up



        • Sustains upstream line pressure



        • Opens fully upon line pressure rise



        • Prioritizes pressure zones







    • Advanced Globe Hydro-Efficient Design
        • Unobstructed flow path



        • Single moving part



        • High flow capacity







    • Fully Supported & Balanced Diaphragm
        • Requires low opening and actuation pressure



        • Excellent low flow regulation performance



        • Progressively restrains valve closing



        • Prevents diaphragm distortion







    • User Friendly Design
        • Easy pressure setting



        • Simple in-line inspection and service







Typical Applications

  • Downhill Supply Lines Emptying Prevention
  • Systems Subject to Varying Supply Pressure
  • Energy Saving Irrigation Systems
  • Pressure Zone Prioritizing
  • Line Fill-Up Control
  • Pump Overload and Cavitation Protection
