Level Control and Pressure Sustaining Valve IR-453-66

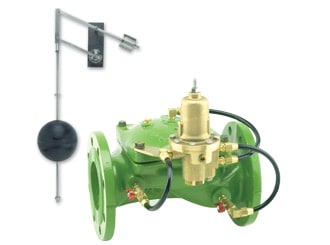

The BERMAD Model IR-453-66 Level Control and Pressure Sustaining Valve with Bi-Level Vertical Float is a hydraulically operated, diaphragm actuated control valve that controls eservoir filling, opening at preset reservoir low level, and shutting at preset high level. During filling, it sustains minimum upstream pressure regardless of fluctuating flow or reservoir level.

  • Line Pressure Driven, Level and Pressure Control

-Prioritizes irrigation over reservoir fill-up

  • Bi-Level Hydraulic Vertical Float

-On/Off service

-Flexible adjusting Range

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low opening and actuation pressure

-Excellent low flow regulation performance

-Progressively restrains valve closing

-Prevents diaphragm distortion

  • User Friendly Design

-Easy access to valve and float

-Easy level and pressure setting

-Simple in-line inspection and service

Typical Applications

  • Full Range of Low Level Reservoirs
  • Unavailable Power Supply Locations
  • Limited Supply Pressure Systems
  • Systems Irrigated Directly from Fill-Up Line
  • Backup for Reservoir Supply Valves
