Flow Control Valve IR 470-50-bRUZ

Flow Control Valve IR-470-50-bRUZ

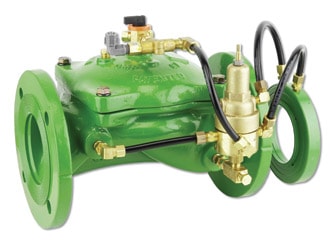

The BERMAD Flow Control Valve with Hydraulic Remote Control is a hydraulically operated, diaphragm actuated control valve that controls system demand to a preset maximum flow rate. It either opens or shuts in response to a pressure command.

  • Hydraulic Flow Control

-Line pressure driven

-Limits fill-up rate and consumer over-demand

-Hydraulically controlled On/Off

  • Advanced Globe Hydro-Efficient Design

-Unobstructed flow path

-Single moving part

-High flow capacity

  • Fully Supported & Balanced Diaphragm

-Requires low actuation pressure

-Excellent low-flow regulation performance

-Prevents diaphragm distortion

  • Hydraulic Flow Sensor (upstream installation)

-No Moving parts

-No need for flow straightening

  • User-Friendly Design

-Easy flow setting

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Line Fill-Up Control
  • Multiple Independent Consumer Systems
  • Irrigation Machines
  • Distribution Centers
  • Filter Stations




[1] BERMAD Model IR-470-50-bRUZ opens upon pressure
drop command, limits fill-up rate and consumer over
demand maintaining filters back flush pressure.
[2] BERMAD Relief Valve Model IR-43Q-R
[3] BERMAD Backwash Valve Model IR-3×2-350-A-I
[4] BERMAD Backwash Flow Control Valve Model IR-470-beKU
[5] BERMAD Pressure Reducing Hydrometer with Solenoid
Control Model IR-920-M0-55-R
