Pressure Reducing Hydrometer IR-920-M0-55-R

Pressure Reducing Hydrometer IR-920-M0-55-R

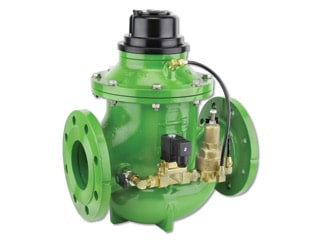

The BERMAD Model IR-920-M0-55-R integrates a vertical turbine Woltman-type water meter and a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls system irrigation together with the irrigation controller. The BERMAD Hydrometer reduces downstream pressure to a constant preset maximum. It either opens or shuts in response to an electric signal.

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Line pressure driven, Electrically Controlled On/Off

-Protects downstream systems

  • Magnetic Drive with Vacuum-sealed register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Varios pulse combinations

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device

-Precise measurement

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Remote Flow Data Read-Out
  • Flow Monitoring & Leakage Control
  • Remote and/or Elevated Plots
  • Pressure Reducing Systems
  • Distribution Centers
  • Irrigation Machines

[1] BERMAD Model IR-920-M0-55-R opens in response to an
electric signal, establishing reduced pressure zones and
measuring the flow.
[2] BERMAD Solenoid Controlled Main Valve
Model IR-410-R
[3] BERMAD Air Valve Model ARC-A-I-I
