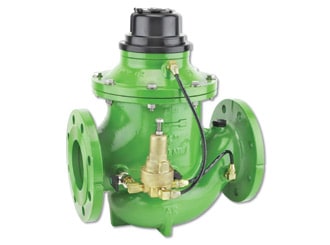

Pressure Reducing Hydrometer IR-920-M0-R

Pressure Reducing Hydrometer IR-920-M0-R

The BERMAD Pressure Reducing Hydrometer integrates a vertical turbine Woltman-type water meter, with a diaphragm actuated hydraulic control valve.  The BERMAD IR-920-M0-R reduces higher upstream pressure to lower constant downstream pressure.

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Hydraulic Pressure Control

-Line pressure driven

-Protects downstream

  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Varios pulse combinations

  • Internal Inlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device

-Precise measurement

  • User-Friendly Design

-Easy pressure setting

-Simple in-line inspection and service

-Easy addition of control features

Typical Applications

  • Computerized Irrigation Systems
  • Pressure Reducing Systems
  • Remote Flow Data Read-Out
  • Flow Monitoring & Leakage Control
  • Volumetric Irrigation Systems

[1] BERMAD Model IR-920-M0-R protects the system
measurs the flow.
[2] BERMAD Relief Valve Model IR-43Q-R
[3] BERMAD Air Valve Model ARC-A-P-I
[4] BERMAD Model IR-310-B
