Pressure Reducing and Sustaining Hydrometer IR-923-M0-55-R

Pressure Reducing and Sustaining Hydrometer IR-923-M0-55-R

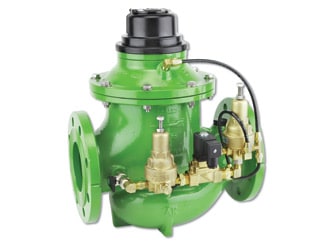

The BERMAD Model IR-923-M0-55-R integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls irrigation together with the irrigation controller. The BERMAD Hydrometer sustains the preset minimum upstream pressure; reduces downstream pressure to a constant preset maximum, and either opens or shuts in response to an electric signal.

  • Integrated “All-in-One” Control Valve

-Saves space, cost and maintenance

  • Line Pressure Driven, Electrically Controlled On/Off

-Protects downstream systems

-Prioritizes pressure zones

-Controls system fill-up

  • Magnetic Drive with Vacuum-Sealed Register

-Water-free gear train mechanism

-Reed-switch and Opto pulse-generating modes

-Various pulse combinations

  • InternalInlet & Outlet Flow Straighteners

-Saves on straightening distances

-Maintains accuracy

  • Integrated Flow Metering Calibration Device
  • User-Friendly Design

-Simple in-line inspection and service

Typical Applications

  • Computerized Irrigation Systems
  • Remote and/or Elevated Plots
  • Flow Monitoring & Leakage Control
  • Line Fill-Up Control
  • Line Emptying Prevention
  • Pressure Reducing Stations
  • Filter Stations
  • Irrigation Machines

[1] BERMAD Model IR-923-M0-55-R opens in response to
an electric signal, sustains filters back flush pressure and
establishes reduced pressure zone.
[2] BERMAD Relief Valve Model IR-43Q-R
[3] BERMAD N.C. Main Valve Model IR-405-54-R
