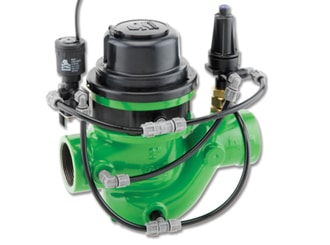

Flow Control Hydrometer IR-970-M0-55-KV

The BERMAD Model IR-970-M0-55-KV integrates a vertical turbine Woltman-type water meter and a diaphragm actuated hydraulic control valve. Serving as Flow Meter and Main Valve, it controls irrigation together with the irrigation controller. The BERMAD Hydrometer limits the flow to a constant preset maximum. It either opens or shuts in response to an electric signal.

Product Features & Benefits
  • Integrated “All-in-One” Control Valve
    • Saves space, cost and maintenance
  • Line Pressure Driven, Electrically Controlled On/Off
    • Limits fill-up rate and consumer over-demand
  • Magnetic Drive with Vacuum-Sealed Register
    • Water-free gear train mechanism
    • Reed-switch and Opto pulse-generating modes
    • Various pulse combinations
  • Internal Inlet & Outlet Flow Straighteners
    • Saves on straightening distances
    • Maintains accuracy
  • Integrated Flow Metering Calibration Device
  • User-Friendly Design
    • Easy pressure setting
    • Simple in-line inspection and service
Typical Product Applications



Typical Applications

  • Computerized Irrigation Systems
  • Flow Monitoring and Leakage Control
  • Remote and/or Elevated Plots
  • Multiple Independent Consumer Systems
  • Line Fill-Up Control Solutions
  • Distribution Centers

IR-970-MO-55-KV-App
[1] BERMAD Model IR-970-M0-55-KV opens in response to electric signals,
sustains pressure to protect supply system, and measures flow.
[2] BERMAD On/Off Control Valve Model IR-405-Z
[3] BERMAD Air Valve Model ARC-A-P-I
[4] BERMAD Vacuum Breaker Model ½”-ARV
