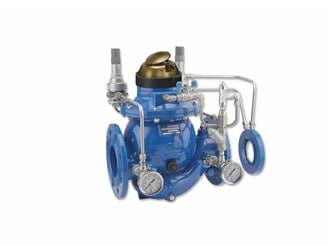

Flow Control and Pressure Reducing Hydrometer | Model- 972-MV

Flow Control and Pressure Reducing Hydrometer Model- 972-MV

The BERMAD Model WD-972-MV integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve.

The WW-972-MV has two independent functions: It maintains both pre-set maximum flow and reduces higher upstream pressure to lower constant downstream pressure, regardless of
varying demand or upstream pressure.

  • Integrated “All-in-One” Control Valve
    • Saves space, cost and maintenance
  • Line Pressure Driven
    • Protects downstream system
    • Prioritizes pressure zones
    • Controls system fill-up
  • Magnetic Drive with Vacuum-Sealed Register
    • Water-free gear train mechanism
    • Reed-switch and Opto pulse-generating modes
    • Various pulse combinations
  • Internal Inlet & Outlet Flow Straighteners
    • No need for flow straightening distances
    • Maintains accuracy
  • Integrated Flow Metering Calibration Device
  • User-Friendly Design
    • Simple in-line inspection and service
