Katup Deluge yang Dikendalikan Secara Elektrik dengan Reset Lokal
FP-400Y-3UM
400Y Series
Perlindungan Kebakaran

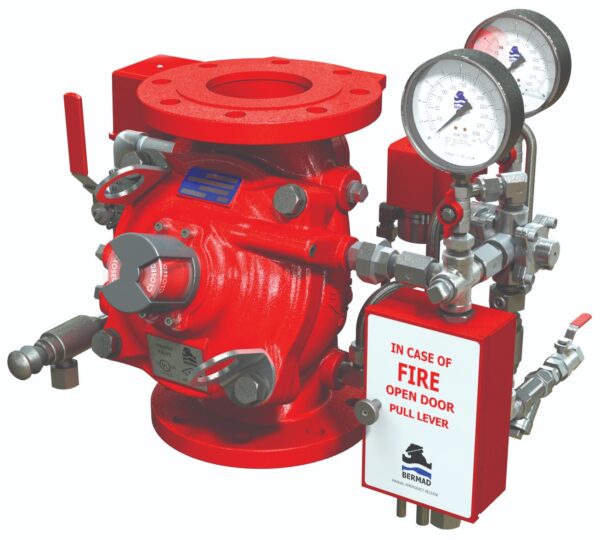

The BERMAD model 400Y-3UM is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards.
The 400Y-3UM is activated by a 3-way solenoid valve, which actuates a latching relay valve, to open the main valve. Once open the main valve will not close until locally reset.
The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
The 400Y-3UM is ideal for systems with open nozzles for water or foam discharge, available with electric components to suit any hazardous location.
Butuh informasi lebih lanjut? Hubungi kami di sini
- Keamanan dan keandalan
- Time proven, simple design with a fail safe actuation
- Single piece, rugged elastomeric diaphragm seal - VRSD technology
- Obstacle-free, uninterrupted flow path
- Tidak ada bagian mekanis yang bergerak
- Latches open: remains open until reset locally
- Sakelar batas posisi katup (opsional)
- Performa Tinggi
- Efisiensi aliran yang sangat tinggi
- Straight through flow Y- type body
- Approved for PN25 / 365 psi
- Perawatan cepat dan mudah
- In-line serviceable
- Fast and easy cover removal
- Swivel mounted drain valves for quick and efficient installation (not including 1½” & 2” valves)
Aplikasi Umum
- Automatic water spray systems
- Foam applications
- Electric fire detection systems with control panels
Fitur Tambahan
- W : Water Motor Alarm
- ZS : Limit Switch Assembly
- DV2 : Katup Pembuangan Hilir
- I : Indikator Posisi Katup Visual
- DV : Katup Drain*
- PI : Pengukur Tekanan*
- AV : 3-way Alarm Test Valve*
- DC : Katup Pemeriksa Tetes Otomatis*
How FP-400Y-3UM
digunakan dalam
Katup deluge berkapasitas besar memastikan perlindungan kebakaran yang andal di area berisiko tinggi.
