Electro-Pneumatically Controlled Deluge Valve with Local Reset
FP-400Y-6M
400Y Series
Perlindungan Kebakaran
The BERMAD model 400Y-6M is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.

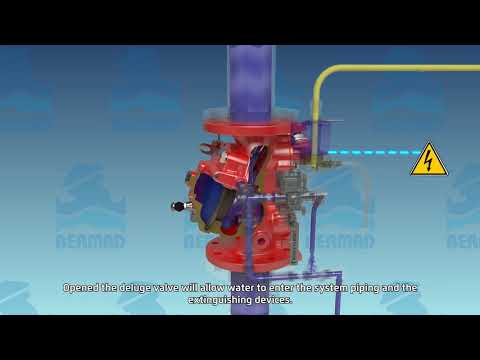

The 400Y-6M is activated by a 3-way solenoid valve which in turn activates a relay valve that latches the main valve open until locally reset.
The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
The 400Y-6M is ideal for systems with open nozzles for water or foam discharge, and is available with electric components to suit any hazardous location.
Butuh informasi lebih lanjut? Hubungi kami di sini
- Safety and reliability
- Desain sederhana yang telah teruji waktu dengan aktuasi aman-gagal
- Elastomer tangguh satu bagian, teknologi VRSD
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Latches open: remains open until reset locally
- Performa tinggi
- Very high flow efficiency
- Bodi tipe Y lurus
- Disetujui untuk PN25 / 365 psi
- Specifically-designed for fire protection
- Face-to-face length standardized to ISO 5752 EN 558-1
- Memenuhi persyaratan standar industri
- Perawatan cepat dan mudah
- In-line serviceable
- Pelepasan penutup yang cepat dan mudah
Aplikasi Umum
- Sistem semprot air otomatis
- Aplikasi busa
- Sistem air korosif
- Sistem deteksi redundan ganda
Fitur Tambahan
- PS : Sakelar Tekanan
- W : Alarm Motor Air
- ZS : Perakitan Saklar Batas
- AMD : Air Maintenance Device
- I : Visual Valve Position indicator
- DV2 : Downstream Drain valve
- DV : Katup Drain*
- PI : Pengukur Tekanan*
- AV : 3-way Alarm Test Valve*
- DC : Automatic Drip Check Valve*
