Top Pilot Pressure Reducing Valve
With 3-Way Trio Solenoid Control

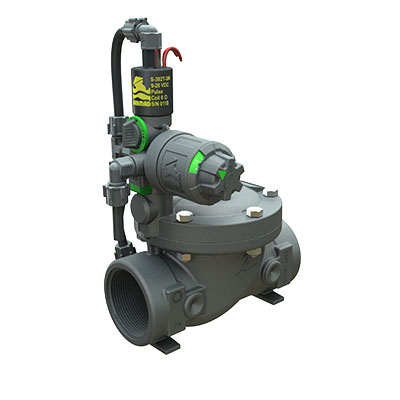

The BERMAD Top Pilot Pressure Reducing Control Valves with solenoid control offer top performance, compact design and intuitive plug & play operation, thanks to an innovative integrated pilot, equipped with a high resolution adjustment dial for easy, quick & accurate calibration. Model IR-22T-55-3W-X reduces higher upstream pressure to a calibrated constant downstream pressure, regardless of flow fluctuations and opens fully when line pressure drops below setting. The valve opens & shuts in response to an electric signal. *This valve is designated for irrigation use only and not for other uses! Manufacturer warranty is limited to the permitted use only.
Butuh informasi lebih lanjut? Hubungi kami di sini
- Line Pressure Driven, Hydraulically Controlled On/Off
- Protects downstream systems
- Opens fully upon line pressure drop
- 3-Way Integrated Pilot - User Friendly Design
- Adjustment knob and high resolution scale for easy calibration without any pressure gauge
- Compact "Box-Size" solution
- Solenoid control is easily added or removed
- Uniquely suitable to all size range up to 3"
- Smooth Valve Opening and Closing
- Accurate and stable regulation
- Low operating pressure requirements
- Composite Hydro-Efficient Globe Valve
- Unobstructed flow path
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low flow regulation performances
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
Aplikasi Umum
- Automated Irrigation Systems
- Systems Subject to Varying Supply Pressure
- Plot Valves in Drip & Sprinklers Irrigation Systems
- Energy Saving Irrigation Systems
Fitur Tambahan
- 5 : Plastic Test Point
- 7 : ½" Anti Vacuum at Valve Downstream
