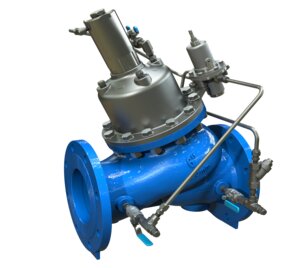

Pressure Relief / Sustaining Valve
830
800 Series
Waterworks
Pressure relief/sustaining hydraulically operated control valve that can fulfill either of two separate functions: When installed in-line, it sustains minimum pre-set, upstream (back) pressure regardless of fluctuating flow or varying downstream pressure. When installed as a “branched from the line” circulation valve it relieves excessive line pressure when above maximum pre-set.
Need more information? Contact us here
- Robust structure, piston actuated – High pressure service
- Line pressure driven – Independent operation
- Elegant simplicity
- Cost effective
- Simple to maintain
- Minimal external accessories
- In-line serviceable - Easy maintenance
- Double chamber design
- Moderated valve reaction
- Moderated closing curve
- Flexible design - Easy addition of features
- Semi-straight flow – Non-turbulent flow
- Stainless Steel raised seat - Cavitation damage resistant
- Obstacle free, full bore – Uncompromising reliability
- V-Port throttling plug (optional) - Very stable at low flow
Typical Applications
- Water delivery system - Prioritizing upstream over downstream demand
- Pumping stations - Ensure operating point on pump curve
- Pumping stations - Circulation during low demand
- Filtration system ‑ Sustaining minimum pressure for efficient backflush
