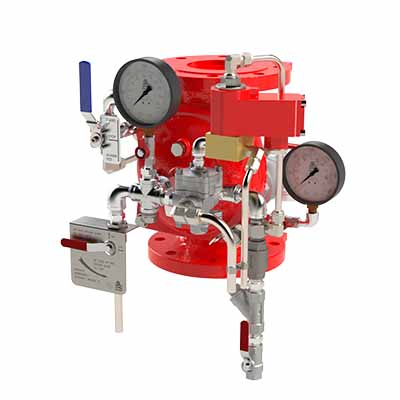

Electrically Controlled, On-Off Deluge Valve with Optional Remote Reset
The BERMAD model 400E-3U is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.
The 400E-3U is activated by a 3-way solenoid valve which in turn activates a 3 way relay valve to open the deluge valve.
It is available with a Remote Reset option that maintains the deluge valve open until de-latched or reset remotely, by Magna-Latch technology.
The 400E-3U is ideal for systems with open nozzles for water or foam discharge and is offered with electric components to suit any hazardous location.
The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
Need more information? Contact us here
- Safety and reliability
- Time proven, simple design with a fail safe actuation
- Single piece rugged elastomer, VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- UL429A Listed 3-Way Solenoid Valve
- Valve position limit switches (optional)
- Meets the requirements of the industry standards
- Quick and easy maintenance
- Designed for high reliability and easy maintenance
- In-line serviceable
- Fast and easy cover removal
Typical Applications
- Electric fire detection systems with control panels
- Automatic water spray systems
- Foam applications
- Corrosive water systems
Additional Features
- ZS : Limit Switch Assembly
- W : Water Motor Alarm
- PS : Pressure Switch
- I : Visual Valve Position indicator
- PI : Pressure Gauge*
- DV : Drain Valve*
- DC : Automatic Drip Check Valve*
- AV : 3-way Alarm Test Valve*
Related Solutions
Knowledge Center
Electrically Controlled, On-Off Deluge Valve with Optional Remote Reset
FP-400E-3U
