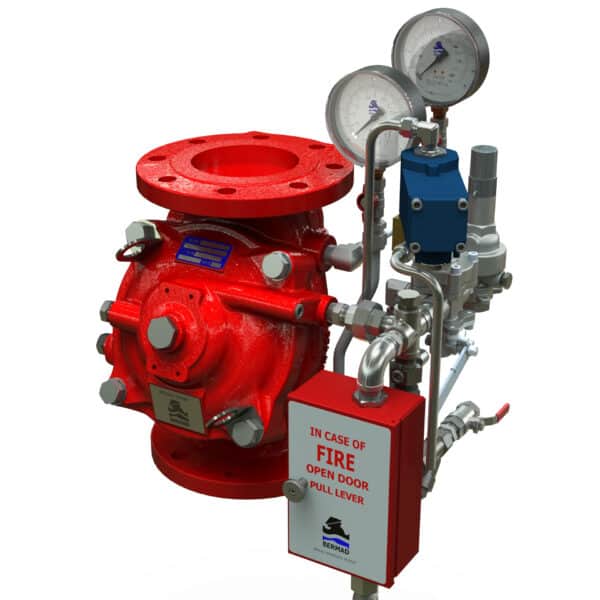

Electric Pressure Control Deluge Valve with Local Reset
Construction
The BERMAD model 400Y-2MC is an elastomeric, hydraulic line pressure operated deluge valve. Designed specifically for advanced fire protection systems and the latest industry standards.
The 400Y-2MC is activated by a 3-Way solenoid valve, that actuates a latching relay valve opening the main valve. Once open, the valve will not close until locally reset.
An integral pressure reducing pilot ensures a stable and precise preset downstream system water pressure.
The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
The 400Y-2MC is ideal for open-nozzle systems with a high pressure water supply and is available with electric components to suit any hazardous location.
Need more information? Contact us here
- Safety and reliability
- Time proven, simple design with a fail safe actuation
- Single piece rugged elastomer, VRSD technology
- Obstacle-free, uninterrupted flow path
- No mechanical moving parts
- Latches open: remains open until reset locally
- Ensures precise, stable downstream water pressure
- High performance
- Very high flow efficiency
- Straight through Y type body
- Approved for PN25 / 365 psi
- Specifically-designed for fire protection
- Face-to-face length standardized to ISO 5752 EN 558-1
- Meets the requirements of the industry standards
- Quick and easy maintenance
- In-line serviceable
- Fast and easy cover removal
- Swivel mounted drain valves (for valves 3" and larger)
Typical Applications
- Electric fire detection systems with control panels
- Automatic water spray systems
- Foam applications
- Corrosive water systems
- High Pressure Water Supply
Additional Features
- PS : Pressure Switch
- W : Water Motor Alarm
- ZS : Limit Switch Assembly
- DV2 : Downstream Drain valve
- I : Visual Valve Position indicator
- DV : Drain Valve*
- PI : Pressure Gauge*
- AV : 3-way Alarm Test Valve*
- DC : Automatic Drip Check Valve*
