Pressure Reducing & Sustaining Valve - Double Chamber
With 3-Way Control & Manual Selector
IR-123-DC-3W-XZ
100‑DC Series
Irrigation

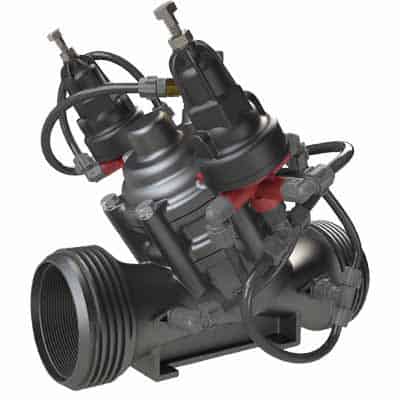

The BERMAD Model IR-123-DC-3W-XZ Pressure Reducing & Sustaining Control Valve is a double chambered, hydraulically operated, diaphragm-actuated control valve that sustains minimum preset upstream (back) pressure and reduces downstream pressure to a constant preset maximum. The Double Chamber Valve is a high performance valve, specially designed for quick response and challenging regulation requirements.
Need more information? Contact us here
- Line Pressure Driven, Hydraulically Controlled
- Protects downstream systems
- Prioritizes pressure zones
- Controls system fill-up
- Double Chamber Design
- Full powered opening and closing
- Decreased pressure loss
- Low throttling noise
- Non-slam closing characteristic
- Protected diaphragm
- Engineered Composite Valve with Industrial Grade Design
- hYflow 'Y' Valve Body with "Look Through" Design
- Ultra-high flow capacity at low pressure loss
- User-Friendly Design
- Simple in-line inspection and service
Typical Applications
- Line Fill-Up Control Solutions
- Line Emptying Prevention
- Pressure Reducing Systems
- Infield Filters Backwash Pressure Sustaining
- Energy Saving Irrigation Systems
Additional Features
- K/L : Auxiliary Closing / Lifting Spring (for 100-DC models only)
