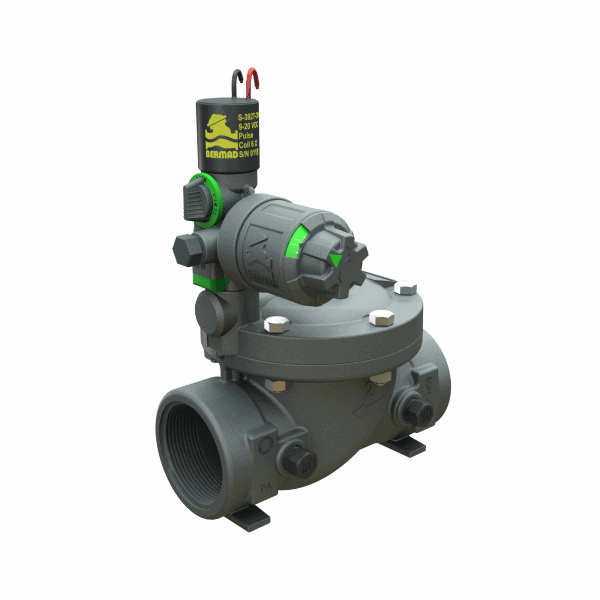

Top Pilot Pressure Reducing Valve
With 2-Way Solenoid Control
IR-22T-55-2W
200 Series
Irrigation
The BERMAD Top Pilot Pressure Reducing Control Valves with solenoid control offer top performance, compact design and intuitive plug & play operation, thanks to an innovative integrated pilot, equipped with a high resolution adjustment dial for easy, quick & accurate calibration. Model IR-22T-55-2W reduces higher upstream pressure to a calibrated constant downstream pressure, regardless of flow fluctuations; and opens when line pressure drops below setting. The valve opens & shuts in response to an electric signal.
*This valve is designated for irrigation use only and not for other uses! Manufacturer warranty is limited to the permitted use only.
Need more information? Contact us here
- Line Pressure Driven, Hydraulically Controlled On/Off
- Protects downstream systems
- 2-Way Integrated Pilot - User Friendly Design
- Adjustment knob and high resolution scale for easy calibration without any pressure gauge
- Compact "Box-Size" solution
- Internal Self-Cleaning control - No external tubes
- Solenoid control is easily added or removed
- Smooth Valve Opening and Closing
- Accurate and stable regulation
- Low operating pressure requirements
- Composite Hydro-Efficient Globe Valve
- Unobstructed flow path
- Single moving part
- High flow capacity
- Highly durable, chemical and cavitation resistant
- Unitized Flexible Diaphragm and Guided Plug
- Excellent low flow regulation performances
- Prevents diaphragm erosion and distortion
- Fully Supported & Balanced Diaphragm
- Requires low actuation pressure
Typical Applications
- Automated Irrigation Systems
- Systems Subject to Varying Supply Pressure
- Plot Valves in Drip & Sprinklers Irrigation Systems
- Energy Saving Irrigation Systems
Additional Features
- 5 : Plastic Test Point
