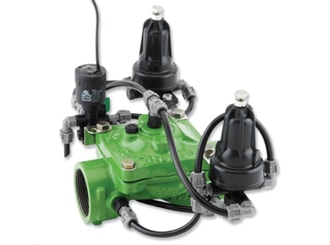

Pressure Reducing Valve IR-420-55-3Q-KX

The BERMAD Model IR-420-55-3Q-KX is a hydraulically operated, diaphragm actuated control valve that reduces higher upstream pressure to lower and stable preset downstream pressure. It either opens or shuts in response to an electric signal. The Bermad IR-420-55-3Q-KX also serves as a Pressure Relief Valve, protecting the system even when in closed position.

    • Solenoid Controlled PRV with Relief Override Feature
        • Protects downstream system



        • Relieves pressure peaks



        • Electrically controlled On/Off







    • 3-Way Pilot Controlled
        • Opens fully upon line pressure drop







    • Advanced Globe Hydro-Efficient Design
        • Unobstructed flow path



        • Single moving part



        • High flow capacity







    • Fully Supported & Balanced Diaphragm
        • Requires low actuation pressure



        • Excellent low flow regulation performance



        • Progressively restrains valve closing



        • Prevents diaphragm distortion







    • Simple In-Line Inspection and Service



Typical Applications

  • Computerized Irrigation
  • Systems Subject to Varying Supply Pressure
  • Energy Saving Irrigation Systems
  • Remote and/or Elevated Plots
  • Multiple Control Valve Systems




[1] Bermad Model IR-420-55-3Q-KX opens in response to
electric signal, establishes reduced pressure zone, and
relieves supply pressure peaks even when in closed position.
[2] BERMAD Air Valve Model ARA-A-P-P
[3] BERMAD Vacuum Breaker Model ½”-ARV
