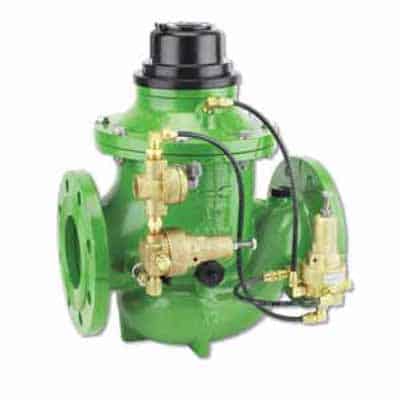

Pressure Reducing and Sustaining Hydrometer IR-923-M0-50-R
The BERMAD Model IR-923-M0-50-R integrates a vertical turbine Woltman-type water meter with a diaphragm actuated hydraulic control valve. As the system’s Flow Meter and Main Valve, it controls irrigation together with the irrigation controller. The BERMAD Hydrometer sustains the preset minimum upstream pressure; reduces downstream pressure to a constant preset maximum, and either opens or shuts in response to remote pressure commands.
- Integrated “All-in-One” Control Valve
-Saves space, cost and maintenance
- Line Pressure Driven, Hydraulically Controlled On/Off
-Protects downstream system
-Prioritizes pressure zones
-Controls system fill-up
- Magnetic Drive with Vacuum-Sealed Register
-Water-free gear train mechanism
-Reed-switch and Opto pulse-generating modes
-Various pulse combinations
- Internal Inlet & Outlet Flow Straighteners
-Saves on straightening distances
-Maintains accuracy
- Integrated Flow Metering Calibration Device
- User-Friendly Design
-Simple in-line inspection and service
Typical Applications
- Computerized Irrigation Systems
- Flow Monitoring & Leakage Control
- Line Fill-Up Control
- Line Emptying Prevention
- Pressure Reducing Stations
- Filter Stations
- Irrigation Machines
