BERMAD Sizing

Proper valve sizing plays a crucial role in the design of water supply and irrigation systems. Accurate sizing is essential for achieving optimal efficiency, stable operation, and long-term system and valve performance. BERMAD Sizing has become one of the most valuable tools for designers, based on BERMAD’s decades of expertise. Its advanced algorithm integrates a wide range of hydraulic calculations and formulas to simulate real-world operating conditions, including variations in pressure and flow. By doing so, BERMAD Sizing evaluates and predicts the load and performance of hydraulic control valves at different system conditions.

What is BERMAD Sizing?

BERMAD’s Sizing optimizes the selection and sizing of BERMAD valves according to the specific operating conditions of a customer’s system. Its calculations are powered by advanced algorithms based on widely accepted sizing methodologies- such as the ISA-75.01 guidelines from the International Society of Automation, along with hydraulic formulas and decades of BERMAD’s engineering experience.

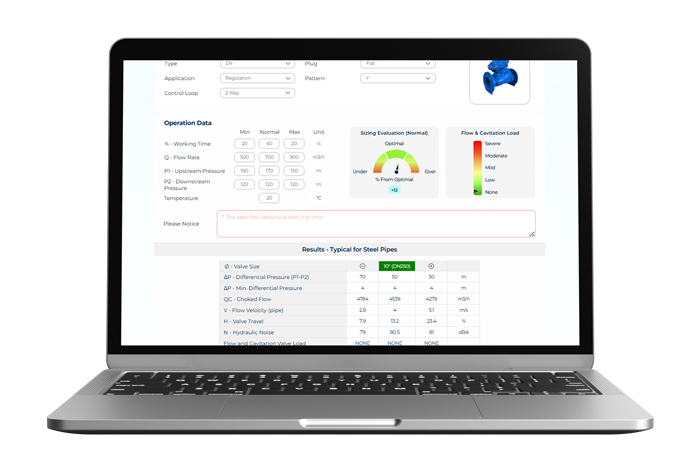

BERMAD Sizing supports accurate valve selection by allowing users to input up to three regulation scenarios simultaneously. It then performs the necessary calculations and presents the results on a single screen in both numerical and graphical formats.

Sizing recommendations based on international standards provide a cost-effective approach by selecting the appropriate valve size according to operation conditions, referring to the ratio between the required flow coefficient (Kv) to the valve flow coefficient (Kv).

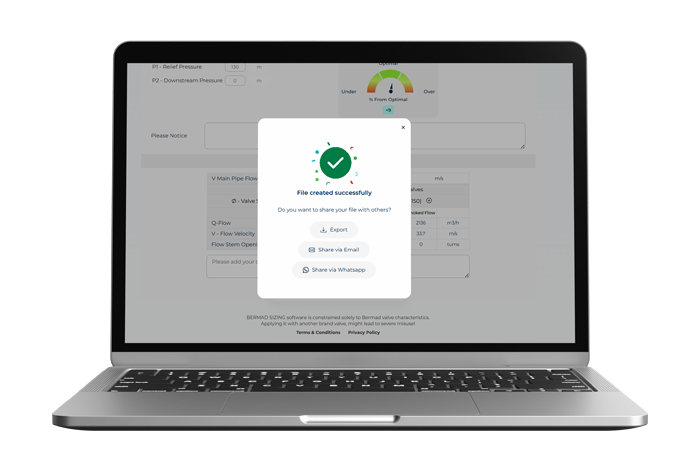

However, this basic guideline does not account for important factors such as cavitation resistance, valve travel, flow velocities, noise, hydraulic load, operating duration and more. BERMAD’s proprietary formulas incorporate all these parameters, and BERMAD Sizing integrates them into its sizing calculations results. BERMAD Sizing concludes the process by generating a detailed report summarizing sizing recommendations.

Registration

Login

Registration

Login

Easy & Optimized Selection Tool

Allows easy evaluation of most suitable & cost efficient solution for your need

Clear & Simple

Enable simple comparison of up to 3 regulation scenarios for a single valve

Calculation Modules

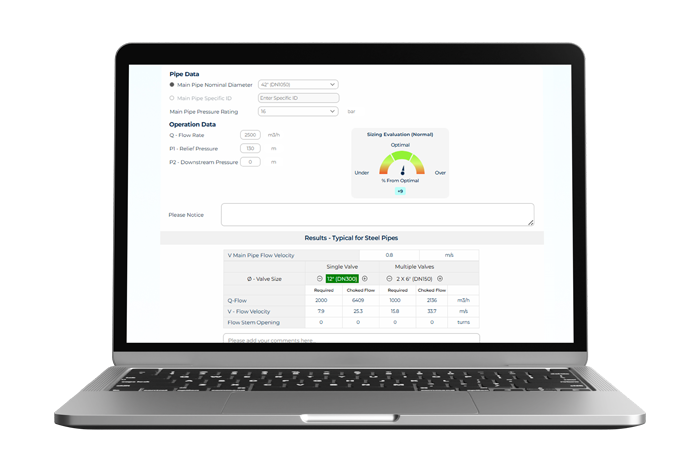

BERMAD Sizing includes four calculation modules: On/Off, Regulation, Pipeline Relief and Proportional

How Does it Work?

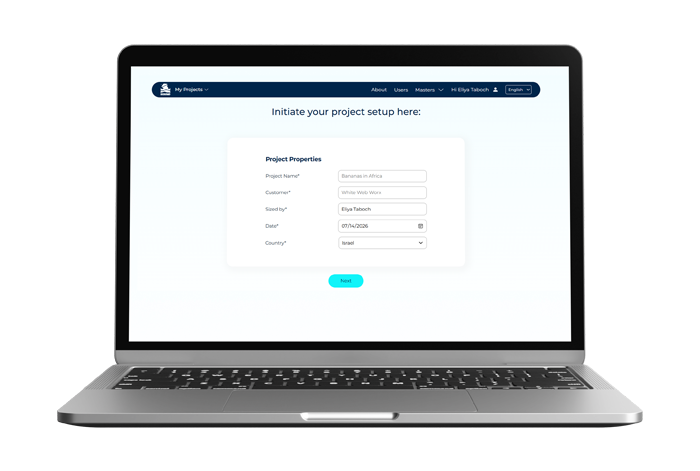

Before using BERMAD Sizing, we strongly recommend contacting your local BERMAD representative for a brief walkthrough of BERMAD Sizing and its capabilities. This will help you become familiar with the workflow and get the best user experience from the start. Once completed, click Register to create your account. After registration, you will receive an email with a link that will allow you to access and start using BERMAD Sizing.

New users are initially granted a basic access level. To help you get the most from BERMAD Sizing, we recommend watching the webinar available below, which provides a step-by-step introduction to BERMAD Sizing. As your experience grows, additional access permissions may be requested through your local BERMAD representative, who will be happy to assist you.
