Hydraulically Controlled Pressure Deluge Valve with Local Reset FP-400Y 1MC

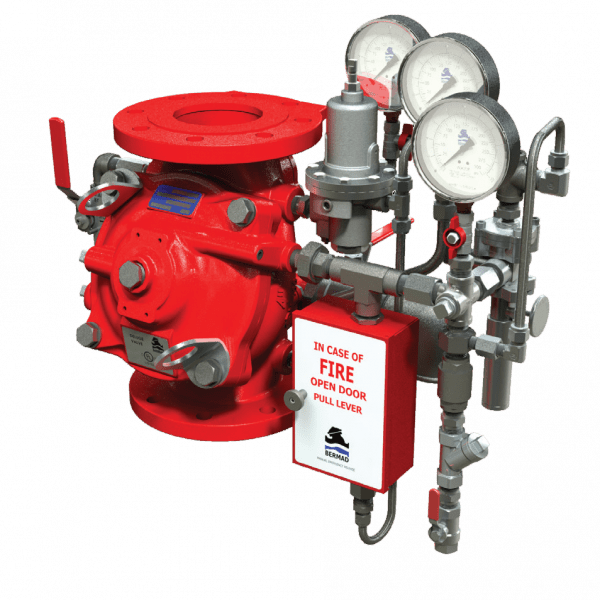

The BERMAD model 400Y-1MC is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards.
The 400Y-1MC is activated by a hydraulic relay valve which latches the deluge valve open until reset locally.
An integral pressure reducing pilot valve ensures a precise, preset and stable downstream system water pressure.
The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.
The 400Y-1MC is ideal for systems with open nozzles with a high pressure water supply for water or foam discharge.
- Safety and reliability
-Time proven, simple, fail-safe actuation
-Single piece, rugged elastomeric diaphragm seal – VRSD technology
-Obstacle-free, uninterrupted flow path
-No mechanical moving parts
-Latches open: remains open until reset locally
-Valve position limit switches (optional)
- High performance
-Very high flow efficiency
-Straight through flow Y- type body
-Approved for PN25 / 365 psi
- Designed for fire protection
-Face-to-face length standardized to ISO 5752 / EN558-1
-Meets the requirements of the industry standards
- Quick and easy maintenance
-In-line serviceable
-Fast and easy cover removal
-Swivel mounted drain valves*
* not including 1½” & 2” valves
Typical Applications
- High Pressure water supply
- Automatic water spray
- Foam applications
- Corrosive water systems
System Installation
A typical installation of the BERMAD model 400Y-1MC features automatic actuation via a hydraulic universal relay valve, triggered by a fusible plug loop.
A pressure reducing pilot valve integrated in the trim ensures a precise and stable pre-set downstream pressure.
When fitted with a limit switch the valve can send a feedback signal to a remote valve position monitoring system.
