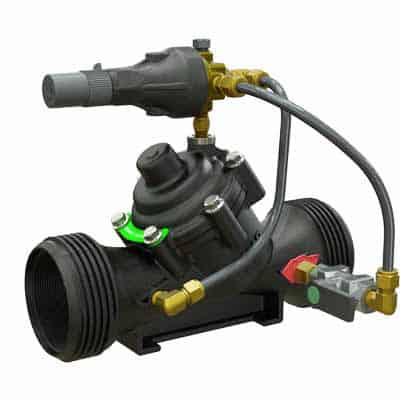

QUICK PRESSURE RELIEF VALVE For High Pressure IR-13Q-HP-2W

The BERMAD Model IR‑13Q‑HP‑2W is a hydraulically operated, diaphragm actuated control valve designed to relief excessive line pressure when it rises above the preset maximum. It responds to rises in system pressure immediately, accurately and with high repeatability, by opening fully. The BERMAD Model IR‑13Q‑HP‑2W provides smooth drip tight closing.

Product Features & Benefits
  • Hydraulic Control Valve
    •  Line pressure driven
    •  Short response time
    •  Long term drip tight sealing
  •  Engineered Composite Valve with Industrial Grade Design
    •  Adaptable on‑site to a wide range of end connection
    •  Highly durable, chemical and cavitation resistant
  •  hYflow ‘Y’ Valve Body with “Look Through” Design
    •  Ultra‑high flow capacity at low pressure loss
  • Unitized “Flexible Super Travel” (FST) Diaphragm and Guided Plug
    •  Accurate and stable regulation with smooth closing
    •  Requires low actuation pressure
    •  Prevents diaphragm erosion and distortion
    •  Simple in‑line inspection and service
Typical Product Applications
  • System Burst Protection
  •  Momentary Pressure Peak Elimination
  •  System Failure Visual Indication
  •  Filter Burst Protection
