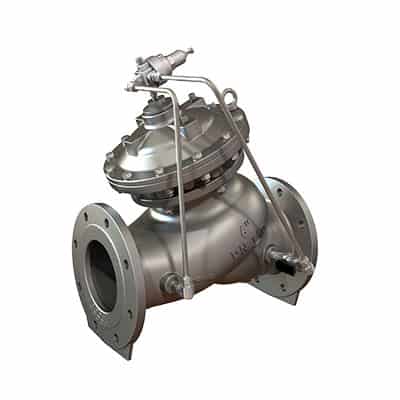

Quick Pressure Relief Valve MN-73Q

Quick Pressure Relief control valve hydraulically operated, that relieves excessive system pressure when this pressure rises above the pre-set value. It immediately, accurately, and with high repeatability responds to system pressure rise by fully opening. BERMAD 700 Series valves are hydraulic, pilot operated, oblique pattern, globe valves with a seat assembly and double chamber unitized actuator, that can be disassembled from the body as a separate integral unit. The valve’s hydrodynamic body is designed for unobstructed flow path and provides excellent and highly effective modulation capacity for high differential pressure applications. The 700 Series operate under difficult operation conditions with minimal cavitation and noise. They are made of the highest quality materials suitable for different mining applications.

Product Features & Benefits
  •  Designed to stand up to the toughest conditions
    – Tamper resistant
    – Excellent anti-cavitation properties
    – Wide flow range
    – High stability and accuracy
    – Drip tight sealing
  •  Double chamber actuator design
    – Protected diaphragm
    – Moderated valve closing (no surges)
    – Simplified maintenance as it can be removed as a single unit. In-line serviceable
  •  Obstacle free flow path
  •  Balanced seal disc – High relief flow capacity
  •  Manual test valve – No setting change required
