Hydraulically Controlled Deluge Valve with Local Reset FP 400Y-1M

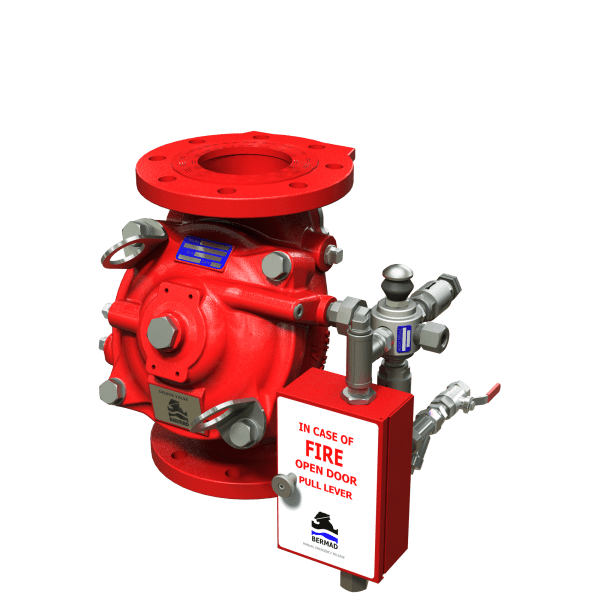

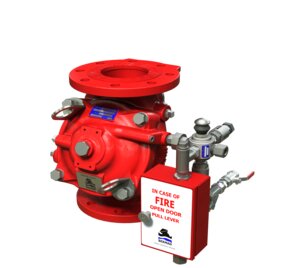

The BERMAD model 400Y-1M is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-1M is activated by a pressure drop in a fusible plug wet pilot line.

Once open, the 400Y-1M latches open until locally reset. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.

The 400Y-1M is ideal for systems with open nozzles for water or foam discharge.

  • Safety and reliability

❑ Time proven, simple, fail-safe actuation
❑ Single piece, rugged elastomeric diaphragm seal -VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Latches open until reset locally
❑ Valve position limit switches (optional)
❑ Local valve position indicator beacon (optional)

  • High performance

❑ Very high flow efficiency
❑ Straight through flow Y- type body
❑ Approved for PN25 / 365 psi

  • Designed for fire protection

❑ Face-to-face length standardized to ISO 5752 / EN558-1
❑ Designed to meet the requirements of the industry standards

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves *

* not including 1½” & 2” valves

Typical Applications

  • Hydraulic remote controlled systems
  • Automatic water spray
  • Foam applications
  • Corrosive water systems



System Installation

A typical installation of the BERMAD model 400Y-1M, features automatic actuation by way of a fusible plug wet pilot line.

It can also be triggered manually using the local manual emergency release.

When open and fitted with a limit
switch the valve can send a feedback signal to a remote valve status monitoring system.
