Electrically Controlled On-Off Deluge Valve | FP 400Y-3D

Electrically Controlled On-Off Deluge Valve FP 400Y-3D

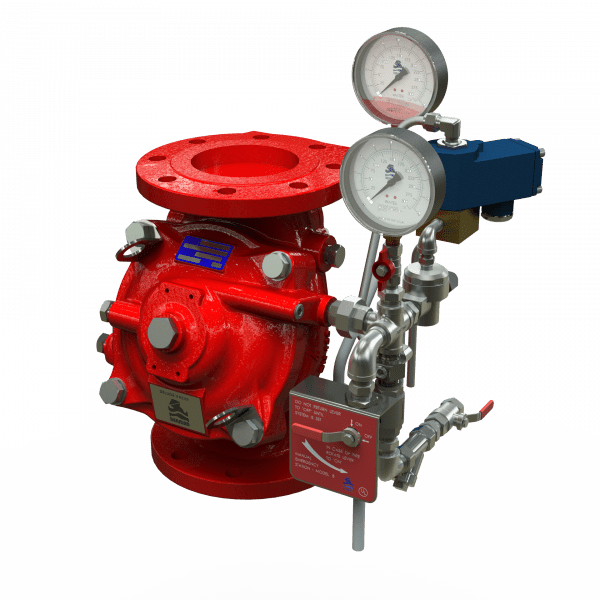

The BERMAD model 400Y-3D is an elastomeric, hydraulic line pressure operated deluge valve, designed specifically for advanced fire protection systems, and the latest industry standards.

The 400Y-3D is activated by a 3-way solenoid valve, suitable for electric fire detection systems.

The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems.

The 400Y-3D is ideal for systems with open nozzles for water or foam discharge.

Available with electric components to suit any hazardous location.



  • Safety and reliability

❑ Time proven, Simple, fail-safe actuation
❑ Single piece, rugged elastomeric diaphragm seal – VRSD technology
❑ Obstacle-free, uninterrupted flow path
❑ No mechanical moving parts
❑ Shuts off on remote command

  • High performance

❑ Very high flow efficiency
❑ Approved for PN25 / 365 psi
❑ Straight through flow Y-type body

  • Specifically-designed for fire protection

❑ Face-to-face length standardized to ISO 5752, EN 558-1
❑ Meets the requirements of industry standards

  • Quick and easy maintenance

❑ In-line serviceable
❑ Fast and easy cover removal
❑ Swivel mounted drain valves*

* not including 1½” & 2” valves

Typical Applications

  • Electric fire detection systems with control panels
  • Remote control water spray systems
  • Foam applications
  • Corrosive water supplies



System Installation

A typical installation of the BERMAD model 400Y-3D features actuation via a hydraulic relay valve and three-way solenoid valve, triggered by a signal from a fire & gas control system or an on-site emergency pushbutton.

When open and fitted with a limit switch the valve can send a feedback signal to a remote valve status monitoring system.
