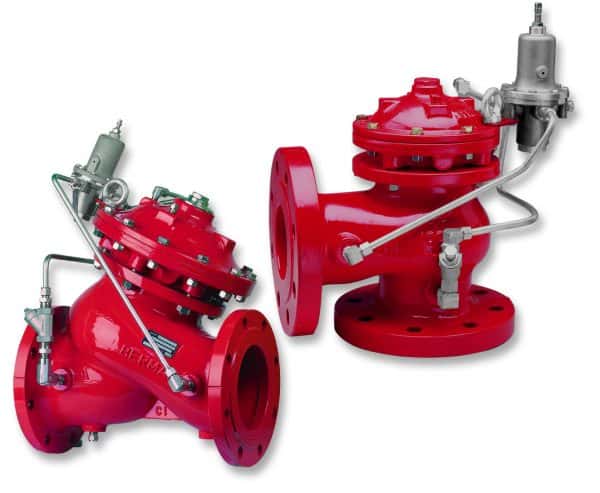

Pressure Relief Valve FP 730-UF



The BERMAD Model FP 730-UF pilot operated relief valve prevents overpressure, maintaining a constant preset system pressure regardless of fluctuating conditions.

It is UL-Listed (up to 350 psi) and FM-Approved in accordance with NFPA-20.

The valve offers reliable performance when installed in: Refineries, petrochemical complexes, tank farms, high-rise buildings, aviation and airports, marine and on-shore installations.

  • Hydraulically powered valve seal design

❑ Reliable drip tight sealing
❑ Eliminates jamming problems

  • Hydro-efficient body design

❑ Wide operating range
❑ Unobstructed straight through flow path

  • Double-chambered unitized actuator

❑ Easy, inline inspection ensures minimal down time
❑ Quick and smooth valve action



Typical Applications

  • Pressure relief for individual diesel fire pump
  • Pump station pressure-relief
  • Centralized thermal pressure relief
  • Foam recirculation; maintains required foam pressure
  • Zone safety relief

Typical Installations

Installation with Angle pressure relief valve

Model-FP-730-UF_1

 Installation with “Y” Pattern relief valveModel-FP-730-UF_2
