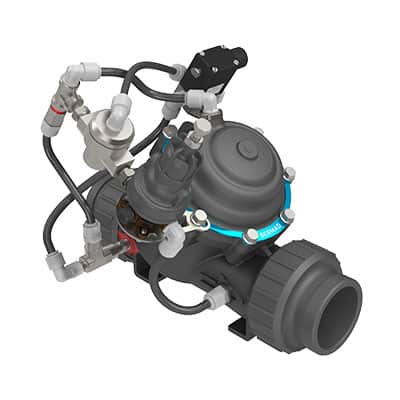

Pressure Reducing Valve 1020-55

Hydraulically operated, pressure reducing control valve that can close drip tight in response to and electric command. When opened it reduces higher upstream pressure to lower constant downstream pressure, regardless of fluctuating demand or varying upstream pressure. The BERMAD 1000 is at the leading edge of control valve design, providing a valve that is free of the typical limitations associated with standard control valves. A unitized flexible diaphragm & guided plug provide a significantly ‘look through’ passage resulting in accurate & stable regulation and high flow capacity. The 1000 unique composite structure allows fast & simple maintenance by easy replacing of lightweight diaphragm assembly. It has a wide range of end connection types and sizes, including articulated flange connections isolating the valve from pipeline bending & pressure stresses.

Product Features & Benefits
  • Easy set-up
    • Super light weight
    • Line pressure driven – no external driving power needed
    • Easy pressure setting – in site or pre-ordered
    • Adaptable on-site to a wide range of end connection
  • Simple and durable design
    • Excellent cavitation resistance
    • Highly durable construction & material – No rust
    • Unitized actuator unit – open, replace, close
    • In-line serviceable – no need to remove from line
  • All the benefits of a diaphragm actuated control valve
    • Wide flow range
    • Low flow stability
    • Drip tight sealing
    • Obstacle free flow pass
    • Easy addition of hydraulic features
Typical Product Applications
  • Pressure control with remote shut-off in case of leak detection,

prioritization of other consumers, scheduled shut-off etc’

  • Suppling safe pressure to facilities and households with low

pressure rated appliances

  • Bypass redundant supply line with pressure control in case of

malfunction in the main line

  • Process flow control in facilitates requiring pressure control
