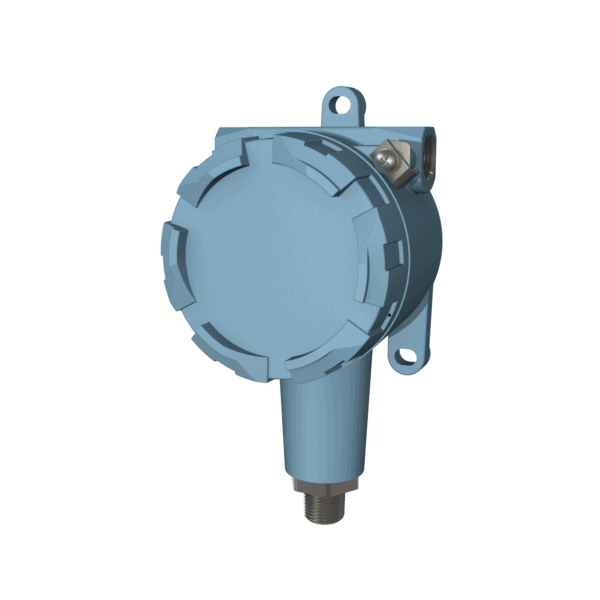

Exd Pressure Switch Model PS-HP

The PS-HP is an adjustable Pressure Switch for use with BERMAD Deluge and control valves, to indicate a pre-determined pressure level. This Pressure Switch offers reliability, repeatability and durability in a compact design. It is suited for operation under the harsh conditions of Zone 1, II 2 G/D Ex d IIC T6 certified for hazardous locations and SIL 2 safety related systems. At the heart of the PS-HP is a snap action Diaphragm assembly, which transfers motion to one SPDT (Single-Pole Double-Throw) micro-switch. Suitable for use with water, air or nitrogen pressure sensing in harsh or hazardous environments as in chemical plants, refineries, gas and petroleum installations offshore and marine vessels.

Product Features & Benefits

■Solid, Single Piece Construction
■Aluminum Epoxy Coated Enclosure
■Pre-Wired Integral Terminal Box
■Safety Vented Design
■Functional Safety Certified as per IEC 61508-2 for use in SIL 2 safety systems
■Convenient Field Adjustable Set-points Against a Reference Scale
■One SPDT (Single-Pole Double-Throw) micro-switch
■Welded Diaphragm
■IP66/NEMA 4x suitable for harsh environments

Typical Product Applications

Suitable for use with water, air or nitrogen pressure sensing in
harsh or hazardous environments as in chemical plants, refineries,
gas and petroleum installations offshore and marine vessels.
