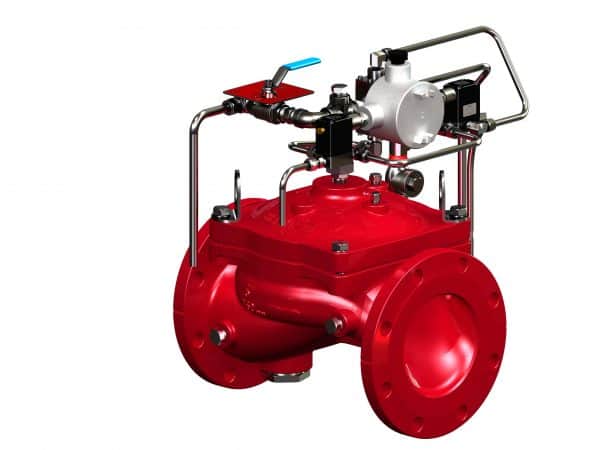

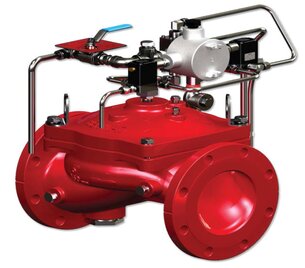

Electrically Controlled On-Off Deluge Valve FP-400E-3D-RL

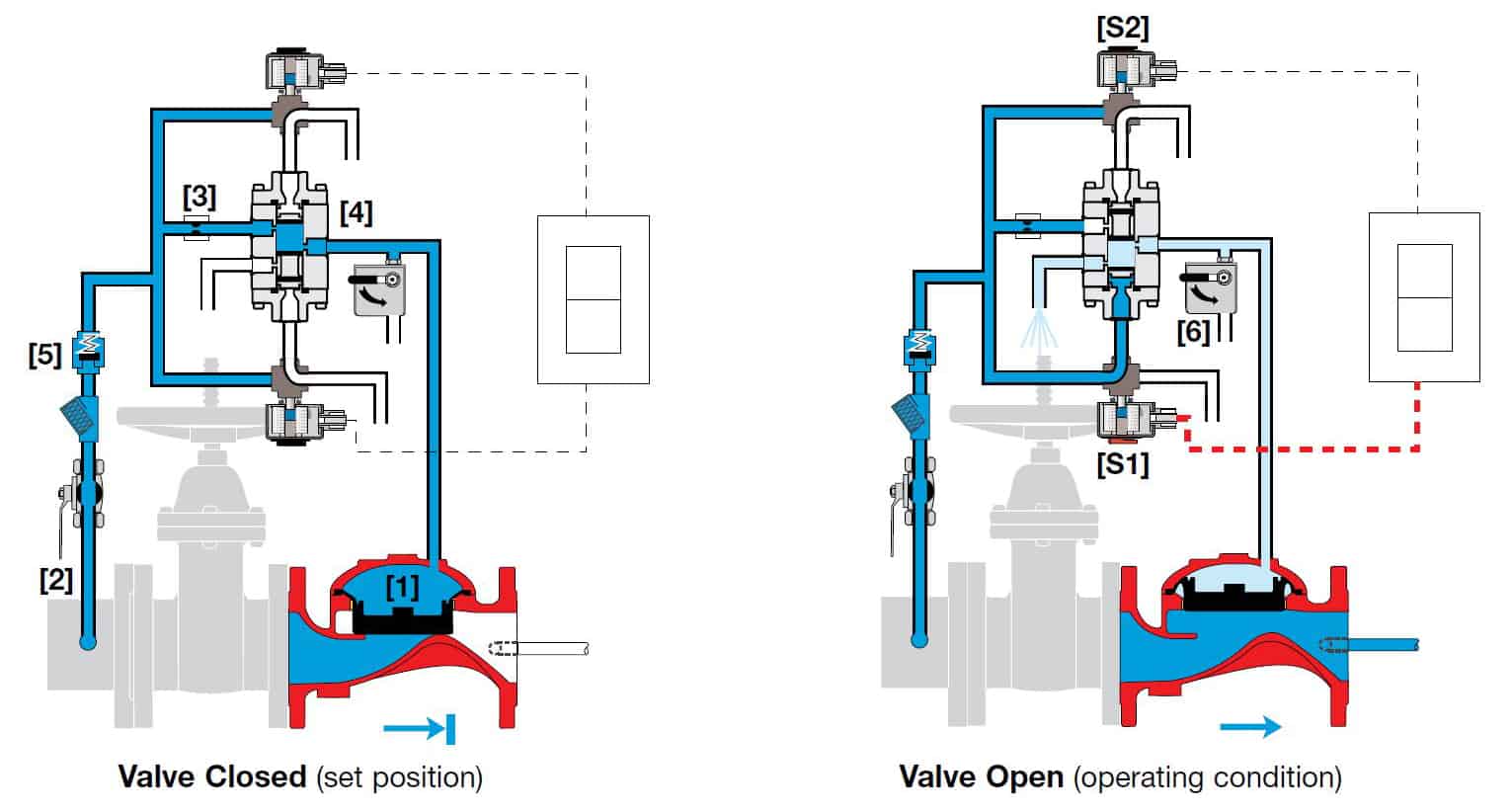

The BERMAD 400E-3D-RL Deluge Valve is suitable for use with remote controlled or/and automatic water spray or foam deluge systems that include electric detection and piping systems with open nozzles. This BERMAD Deluge Valve is equipped with two solenoid valves and Double-Acting Relay Valve (DRV) which trips the deluge valve into an open position during the Opening solenoid activation. The valve will then latch in its last position. The 400E-3D-RL will reset remotely via short pulse to activate the Closing solenoid coil.

Product Features & Benefits
  •  Low Power DC Current – Suitable as battery backup
  •  Electric Remote Reset Latch (RL) – Safety feature
  •  Latched at Last Position – Safer and energy-saving
  •  One-piece molded elastomeric moving part – No maintenance required
  •  Obstacle-Free Full Bore – Uncompromising reliability
  •  Factory Pre-Assembled Trim – Out-of-box quality
  •  In-Line Serviceable – Minimal downtime
Typical Product Applications

Typical Applications

  • Water/foam fire systems
  • Deluge & spray systems
  • Petrochemical facilities
  • Flammable materials storage
  • Marine enviroments
  • Gas storage tanks

&nbsp

Optional

  •  Solenoids for hazardous locations
  •  Limit Switch for hazardous locations
  •  Alarm Pressure Switch for hazardous locations
  •  Foam Concentrate Configuration (FC prefix)
  •  Valve Position Single/Double Limit Switches
