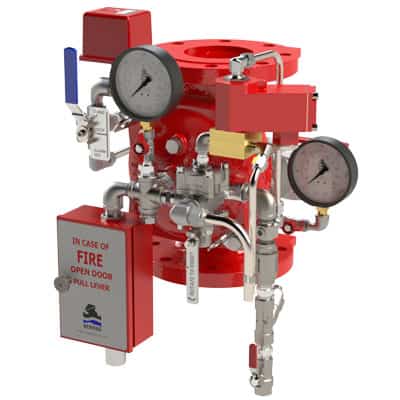

Electrically Controlled Deluge Valve with Local Reset FP 400E – 3UM

The BERMAD model 400E-3UM is an elastomeric, hydraulic, line pressure operated deluge valve, designed for advanced fire protection systems, and the latest industry standards. The 400E-3UM is activated by a 3-way solenoid valve, which actuates a latching relay valve, to open the main valve. Once open the main valve will not close until locally reset. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems. The 400E-3UM is ideal for systems with open nozzles for water or foam discharge, available with electric components to suit any hazardous location.

Product Features & Benefits
  •  Safety and reliability
    •  Time proven, simple design with a fail safe actuation
    •  Single piece, rugged elastomeric diaphragm seal – VRSD technology
    •  Obstacle-free, uninterrupted flow path
    •  No mechanical moving parts
    •  UL429A Listed 3-Way Solenoid Valve
    •  Latches open: remains open until reset locally
    •  Valve position limit switches (optional)
    •  Meets the requirements of industry standards
  •  Quick and easy maintenance
    •  Designed for high reliability and easy maintenance
    •  In-line serviceable
    •  Fast and easy cover removal
Typical Product Applications
  •  Electric fire detection systems with control panels
  •  Remote Control Monitors
  •  Automatic water spray
  •  Foam applications
