BERMAD Launches Fire Protection Torrent Valve

The BERMAD 400Y is designed for flow control in deluge, pressure control deluge, remote on-off, monitor remote control, pre-action systems, pressure reducing and pressure relief. Certified and approved to the latest fire protection standards, It is excellent for all fluids used in fire protection systems, from fire-water supplies to foam solution, Seawater, foam concentrate and other corrosive liquids.

Features and Benefits of BERMAD Torrent Valve

The BERMAD FP/FS-400Y Torrent valve is designed specifically for the fire protection industry, with an emphasis on rugged reliability a for 25 bar/365 psi with an industry-leading flow rate. It is equally suited to vertical or horizontal installation and is available in pipe diameter sizes from 1½” to 16” (DN40 to DN400).

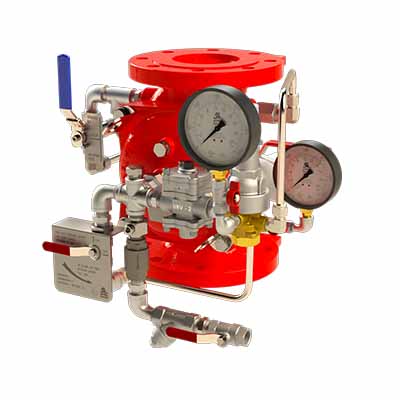

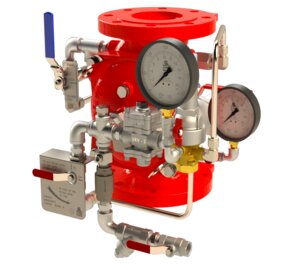

Pneumatic Pressure Control, On-Off Deluge Valve FP 400E-4DC

  • Pressure control function – Constant lower preset, downstream pressure
  • Remote reset – Shut-off on remote command
  • One-piece molded diaphragm-Only moving part – No maintenance required
  • Simple design – Cost effective
  • Obstacle-free full bore – Uncompromising reliability
  • Factory pre-assembled trim – Out-of-box quality
  • In-line serviceable – Minimal down time

Typical Applications

  • Flactuating or over pressure
  • Offshore installations
  • Marine environments
  • Freezing environments
  • Seawater/corrosive water supplies
  • Foam applications
  • Remote monitor

Operation

The BERMAD Model FP 400E-4DC is suitable for flow control in firewater systems that include dry pilot lines with closed fusible plugs.  It opens, preserving system designed flow, and closes in response to pneumatic pressure status in the dry pilot line.
