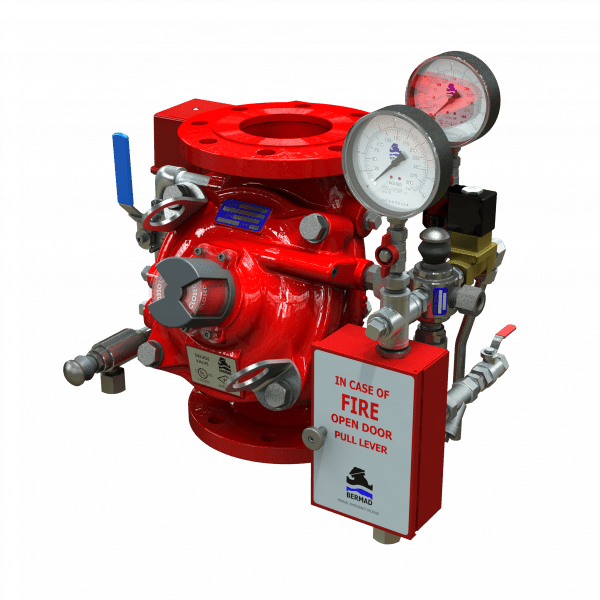

Electrically Controlled Deluge Valve with Local Reset FP-400Y-2M

The BERMAD model 400Y-2M is an elastomeric, hydraulic, line pressure operated deluge valve, designed specifically for advanced fire protection systems and the latest industry standards. The 400Y-2M is activated by a 2-Way solenoid valve. Once open, the 400Y-2M latches open until locally reset. The optional valve position indicator can include a limit switch suitable for Fire & Gas monitoring systems. The 400Y-2M is ideal for systems with open nozzles for water or foam discharge and is available with electrical components to suit any hazardous location.

Product Features & Benefits
  • Safety and reliability

-Time proven, simple, fail-safe actuation
-Single piece, rugged elastomeric diaphragm seal -VRSD technology
-Obstacle-free, uninterrupted flow path
-No mechanical moving parts
-Latches open: remains open until reset locally
-Valve position limit switches (optional)
-Local valve position indicator beacon (optional)

  • High performance

-Very high flow efficiency
-Straight through flow Y- type body
-Approved for PN25 / 365 psi

  • Designed for fire protection

-Face-to-face length standardized to ISO 5752 / EN558-1
-Meets the requirements of the industry standards

  • Quick and easy maintenance

-In-line serviceable
-Fast and easy cover removal
-Swivel mounted drain valves *

* not including 1½” & 2” valves

Typical Product Applications

Typical Applications

  • Electric fire detection systems with control panels
  • Automatic water spray
  • Foam applications
  • Corrosive water systems


System Installation

A typical installation of the BERMAD model 400Y-2M, features automatic actuation by way of a 2-Way solenoid.

It can also be triggered electrically by a signal from a fire & gas control system or an on-site emergency pushbutton.

When open and fitted with a limit switch the valve can send a feedback signal to a remote valve status monitoring system.
